Engineering Speciﬁcations

VM PUMPS

Applications and Installations

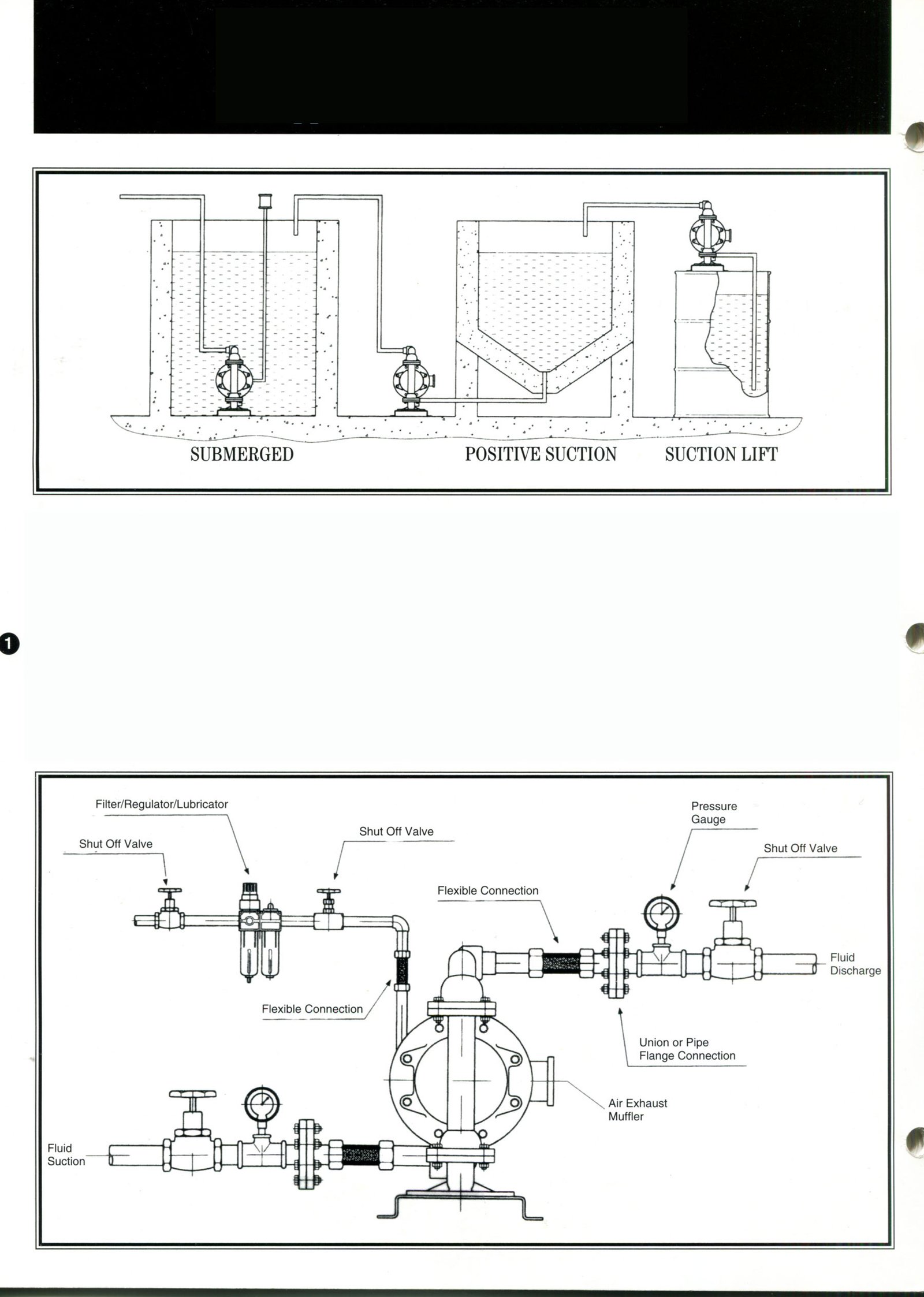

SUBMERGED :

Versa-Matic Pumps are totally submersible. It is important that the air exhaust be ported above the level of the ﬂuid, and that the materials of construction also be compatible with the ﬂuid that the pump is submerged in.

POSITIVE SUCTION :

For emptying tanks it is important to limit the inlet ﬂuid pressure to approximately 10 PSI ' (0.69 bar) for Teﬂon® diaphragms and 15 PSI (1.03 bar) for rubber and thermo—plastic diaphragms. Greater inlet pressure can cause erratic pump operation and premature diaphragm failure

SUCTION LIFT :

The suction capabilities of each pump may vary due to system design, product being pumped, and pump materials of construction. Please consult the factory with specific criteria

VM ELIMA-MATIC® PUMPS

With The Exclusive ELIMA-MATlC® Air Valve System

ANTI-STALLING NON-ICING

LUBRICATION-FREE

True to their name, ELIMA—MATlC pumps virtually eliminate intermittent pump stalling caused by air valve system freeze-ups. By utilizing the patented ELIMA-MATICP” anti—stalling, non—icing, lubrication-free valve system, this common air diaphragm pump problem is a thing of the past

ElIMINATING DOWNTIME :

ELlMA—MATlC ensures ontinuous, reliable pump per- formance. Here’s how it works: The valve spool is positively shifted by the transfer of a pilot shaft. When the main shaft Q travels to full-stroke length, the inner piston on the opposite side depresses an internal pilot shaft which ports a burst of compressed air to the main spool valve. The main spool valve reciprocates in a positive reliable shift. As the pilot shaft

SLOSING YOUR COOl

By evacuating compressed air through air passages that are designed to allow a controlled expansion a considerable reduction in the cooling effect occurs In addition, the center block and air valve surface areas are ribbed and act as heat exchangers to dissipate the rapid cooling effect.

EASE OF MAINTENANCE

The ELIMA-MATlC not only eliminates freezing and stalling, but maintenance headaches as well. The ELlMA—MATIC has only two easily accessible center block o-rings ~ some competitors pumps have as many as seven. The pilot come out as a complete assembly and are easily replaced without the use of an o-ring tool.And the air valve can be worked on without taking the pumps center section apart.

MAXIMIZING PUMPING PERFORMANCE

Versa—Matic pumps can already handle anything from water to 90% solids easily and efficiently. Add the ELlMA—MATIC air valve system and you’ve got a pump that offers powerhouse performance

AIR VALVE UPGRADES

Also available as a conversion kit for Versa-Matic V4,V2 and V3 pumps, as well as Wilden“ 1 1/4”, 2” and 3" metallic pumps, the ELIMA-MATIC“ comes with either an aluminum, stainless steel, or Teflon-coated air section. (The air chambers, air valve and center block can be nickel—plated for diverse applications.)

Available for 1 1/4”,2”.
and pumps. Consult
\'ersa—i\latic or your local
distributor for details.

E5 ELIMA-MATIC 1/2”

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable T0 ..............0-l4 gpm (53 Ipm)

PORT SIZE

Inlet ................. ..0.50" NPT

Discharge . . . . . . . ............. . ..0.50" NPT

AIR INLET

. . . . ............... . ..o.375" NPT

AIR EXHAUST

.................. ..0.375" NPT

SUCTION LIFT

...............15' Dry/25' Wei (6.096m 7.62m)

.....Teﬂon" 5' Dry/l0’ Wei (1 .52m 3.048m)

MAX. PARTICLE SIZE

(Diameter) ........................................0.0625"(l .6mm)

SHIPPING WEIGHTS

Stainless Steel, Hastelloy C 18lbs(8.17kg)

Aluminim............................... 15 lbs(6.8kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

CAUTION: Do not exce-e(l 125 psig (8.5 bars) air supply or liquid pressure.

DIMENSIONS

Consult. factory for certified drawings.

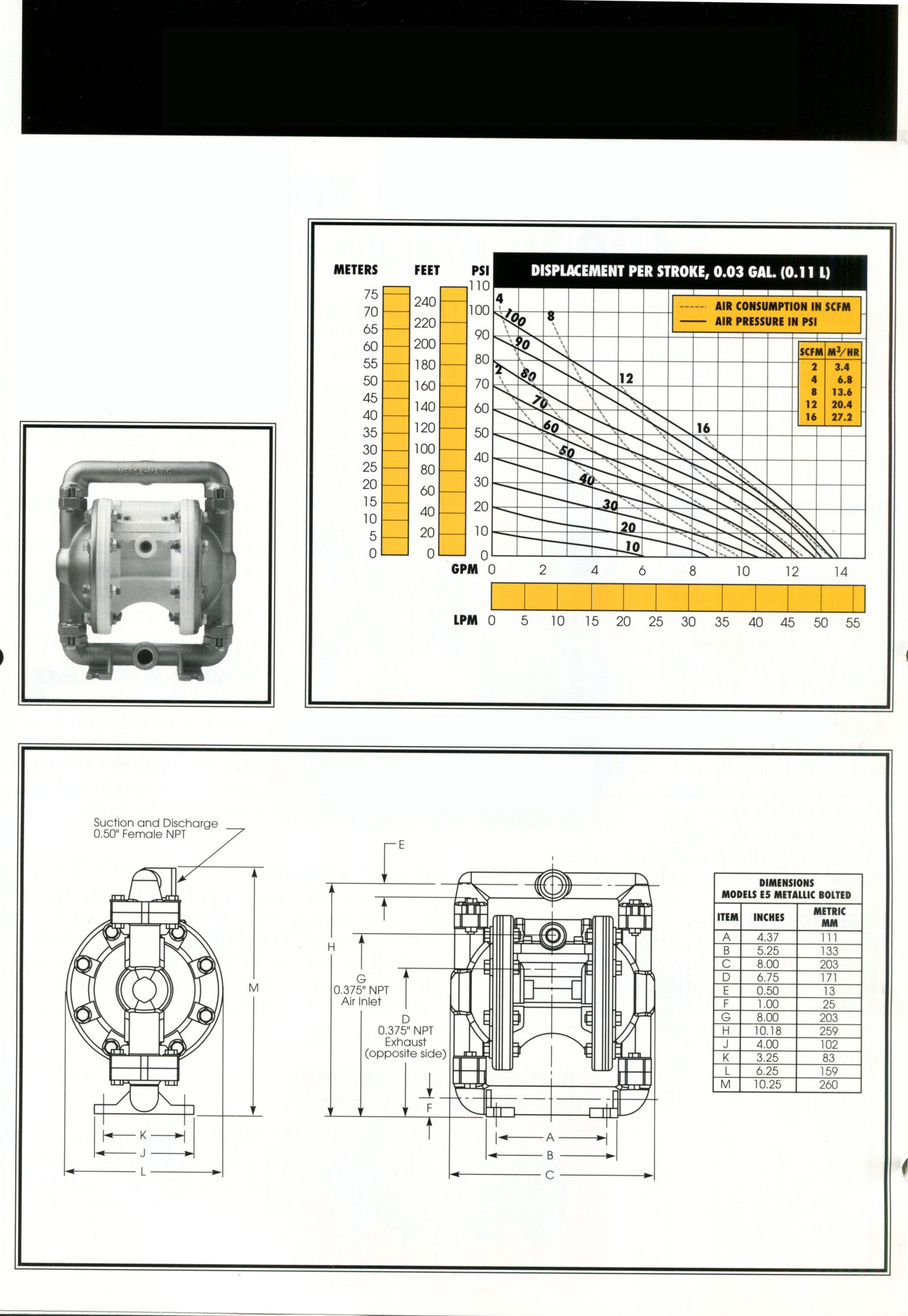

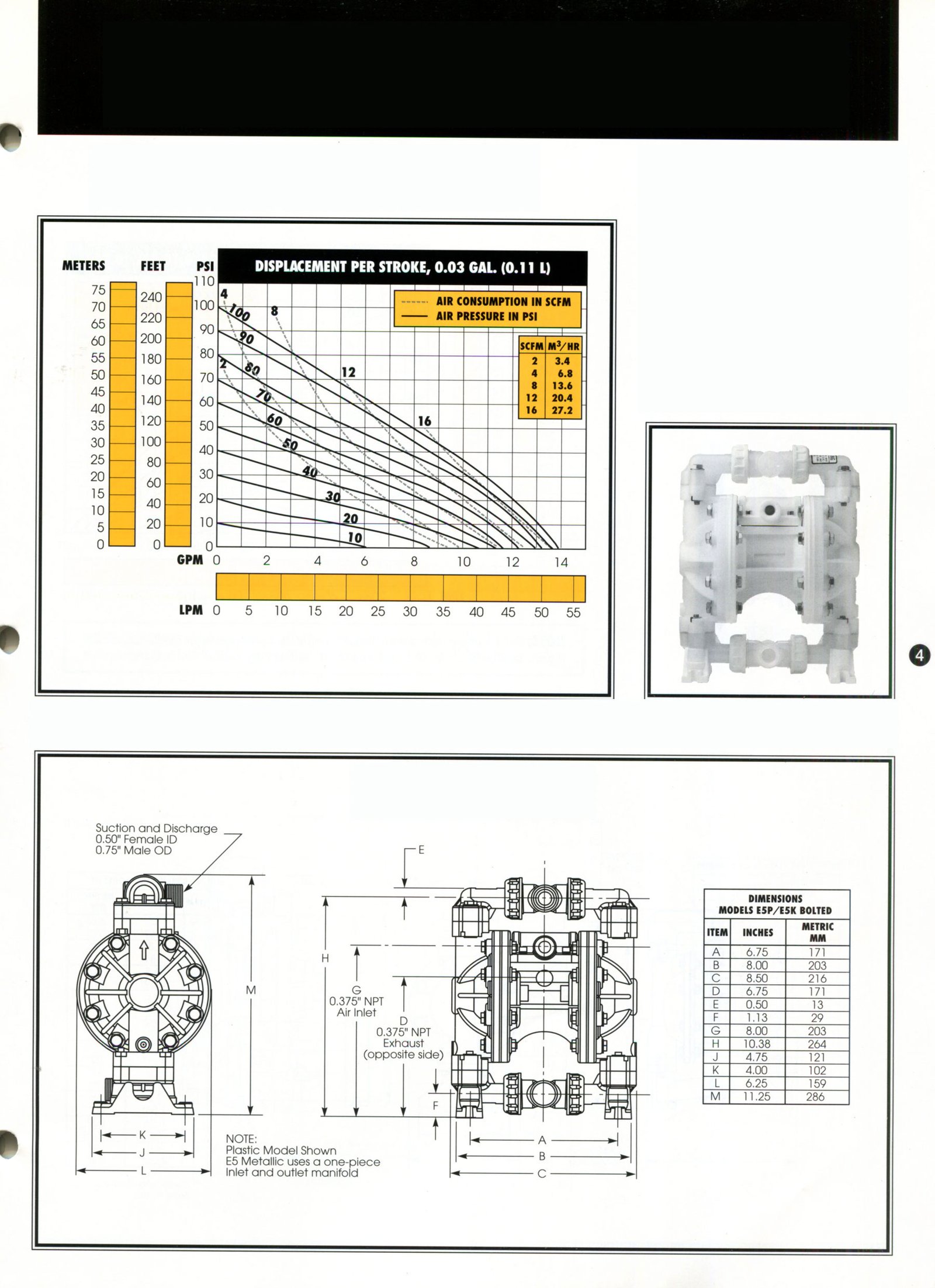

E5/E5K ELIMA-MATIC 1/2”

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable T0 ..............0-l4 gpm (53 Ipm)

PORT SIZE

Inlet and Discharge
ID.............................................0.50" NPT

OD . . . . . . . ............. . ..0.75" NPT

AIR INLET

. . . . ............... . ..o.375" NPT

AIR EXHAUST

.................. ..0.375" NPT

SUCTION LIFT

...............15' Dry/25' Wei (6.096m 7.62m)

.....Teﬂon" 5' Dry/l0’ Wei (1 .52m 3.048m)

MAX. PARTICLE SIZE

(Diameter) ........................................0.0625"(l .6mm)

SHIPPING WEIGHTS

Polypropylene...................10 lbs (4.54kg)

Kynar................................10 lbs (4.54kg)

Teflon...............................12 lbs (5.54kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

CAUTION: Do not exceed 100 psig (6.9 bars) air supply or liquid pressure.

360* Inlet/Discharge Split Manifold Models Available.

DIMENSIONS

Consult. factory for certified drawings.

E1 ELIMA-MATIC 1”

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable T0 .....0-35 gpm (l 32 lpm)

PORT SIZE

Inlet ..l .0" Female NPT (BSP)

Discharge ........l .0" Female NPT (BSP)

AIR INLET

.......... . ..0.375" NPT

AIR EXHAUST

..... ..0.50" NPT

SUCTION LIFT

.....l5' Dry/25' Wei (4.57m/7.62m)

Teﬂon"..... l0' Dry/20' Wet (3.05m/6.l0m))

MAX. PARTICLE SIZE

(Diameter) ..................0.125"(3.17mm1

SHIPPING WEIGHTS

Aluminum ..3l lbs (14.07 kg) 50 160 70

Stainless .....42 lbs (l9.05 kg) 45 MO 60

Husielloyt ............. ..42 lbs (1 9.05 kg) 40

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

NOTE: For E1 pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%. Suction lift is reduced to 10’ (3.05m) dry and 20'(6.10m) wet.

UL Listed Models Available.

CAUTION: Do not exce-e(l 125 psig (8.5 bars) air supply or liquid pressure.

DIMENSIONS

Consult. factory for certified drawings.

E1P/E1K ELIMA-MATIC 1”

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable To ..............0-35 gpm (l32 Ipm)

PORT SIZE

Inlet
................................l.0” ANS|/ DIN Flanged

and Discharge ...... . ..0.75" NPT

AIR INLET

. . . . ............... . ..0.375" NPT

AIR EXHAUST

.................. ..0.50" NPT

SUCTION LIFT

...............15' Dry/25' Wei (6.096m 7.62m)

.....l0' Dry/20' Wet (3.05m/6.l0m)

MAX. PARTICLE SIZE

(Diameter)......O.l25"(3.l 7mm)

SHIPPING WEIGHTS

Polypropylene...................24 lbs (10.9kg)

Kynar................................24 lbs (10.9kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

NOTE: For E1P/E1K pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%. Suction lift is reduced to 10’ (3.05m) dry and 20'(6.10m) wet.

CAUTION: Do not exceed 100 psig (6.9 bars) air supply or liquid pressure.

Split Manifold Models Available.

DIMENSIONS

Consult. factory for certified drawings.

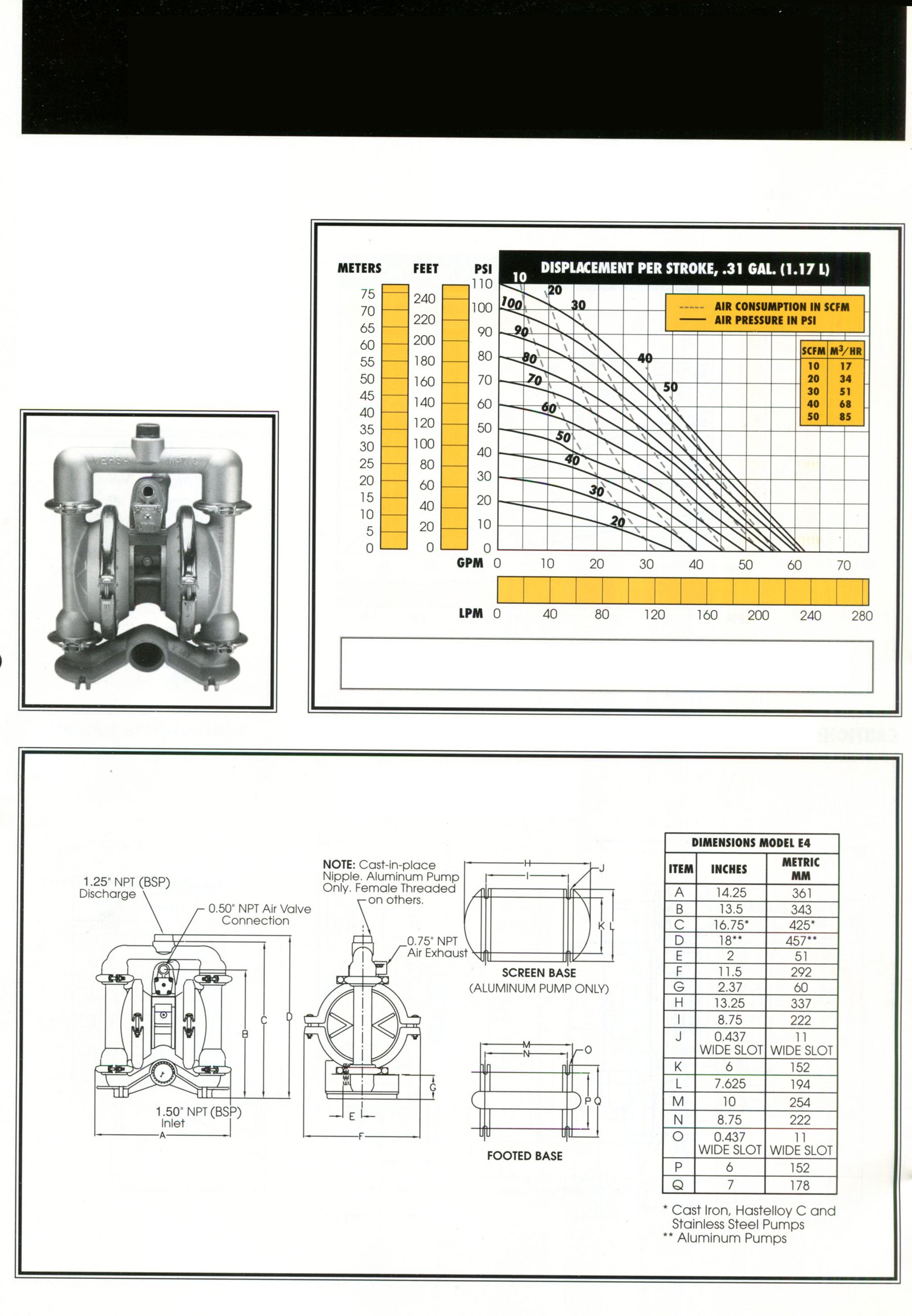

E1 ELIMA-MATIC 1 1/4”

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable T0 .....0-70 gpm (0-265 lpm)

PORT SIZE

Inlet ..l .50" NPT (BSP)

Discharge ........l .25" NPT (BSP)

AIR INLET

.......... . ..0.50" NPT

AIR EXHAUST

..... ..0.75" NPT

SUCTION LIFT

.....l5' Dry/25' Wei (4.57m/7.62m)

Teﬂon"..... l0' Dry/20' Wet (3.05m/6.09m))

MAX. PARTICLE SIZE

(Diameter) ..................0.1875"(4.76mm)

SHIPPING WEIGHTS

Aluminum ..41 lbs (18.60 kg)

Stainless .....57 lbs (25.85 kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

NOTE: For E4 pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%.

CAUTION: Do not exce-e(l 125 psig (8.5 bars) air supply or liquid pressure.

DIMENSIONS

Consult. factory for certified drawings.

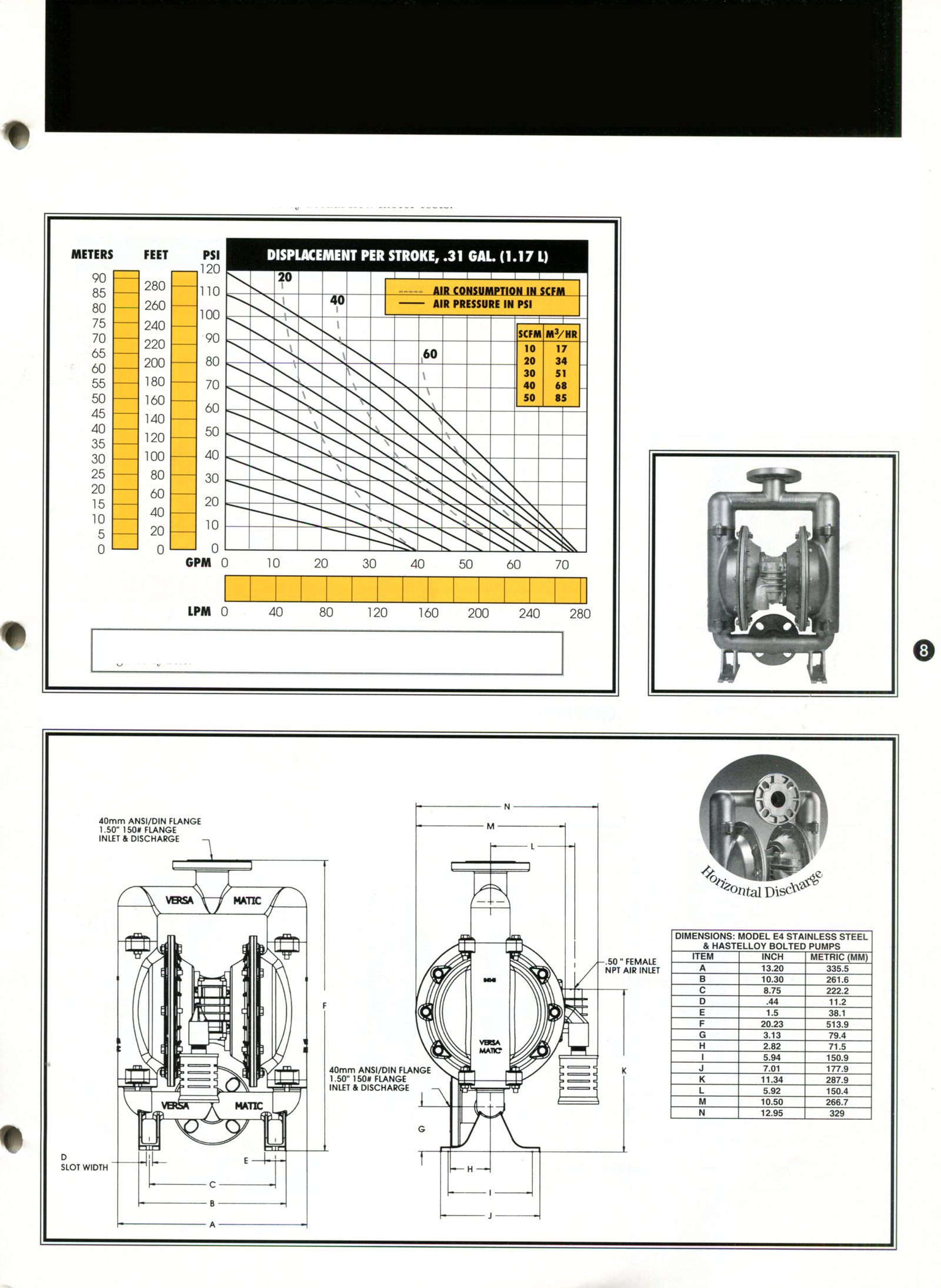

E4 ELIMA-MATIC BOLTED 1 1/2”

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable To ..............0-72 gpm (0- 275 Ipm)

PORT SIZE

Inlet and Outlet
Metallic.......................l.50” ANS|/ DIN

AIR INLET

. . . . ............... . ..0.50" NPT

AIR EXHAUST

.................. ..0.75" NPT

SUCTION LIFT

Dry...........15' Dry(4.75m)

Wet..20 Dry' (6.09m)

MAX. PARTICLE SIZE

(Diameter)......O.l875"(4.76mm)

SHIPPING WEIGHTS

Stainless Steel...................65 lbs (29.5kg)

Hastelloy....................68 lbs (30.8kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

NOTE: For E4 pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%.

CAUTION: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.

DIMENSIONS

Consult. factory for certified drawings.

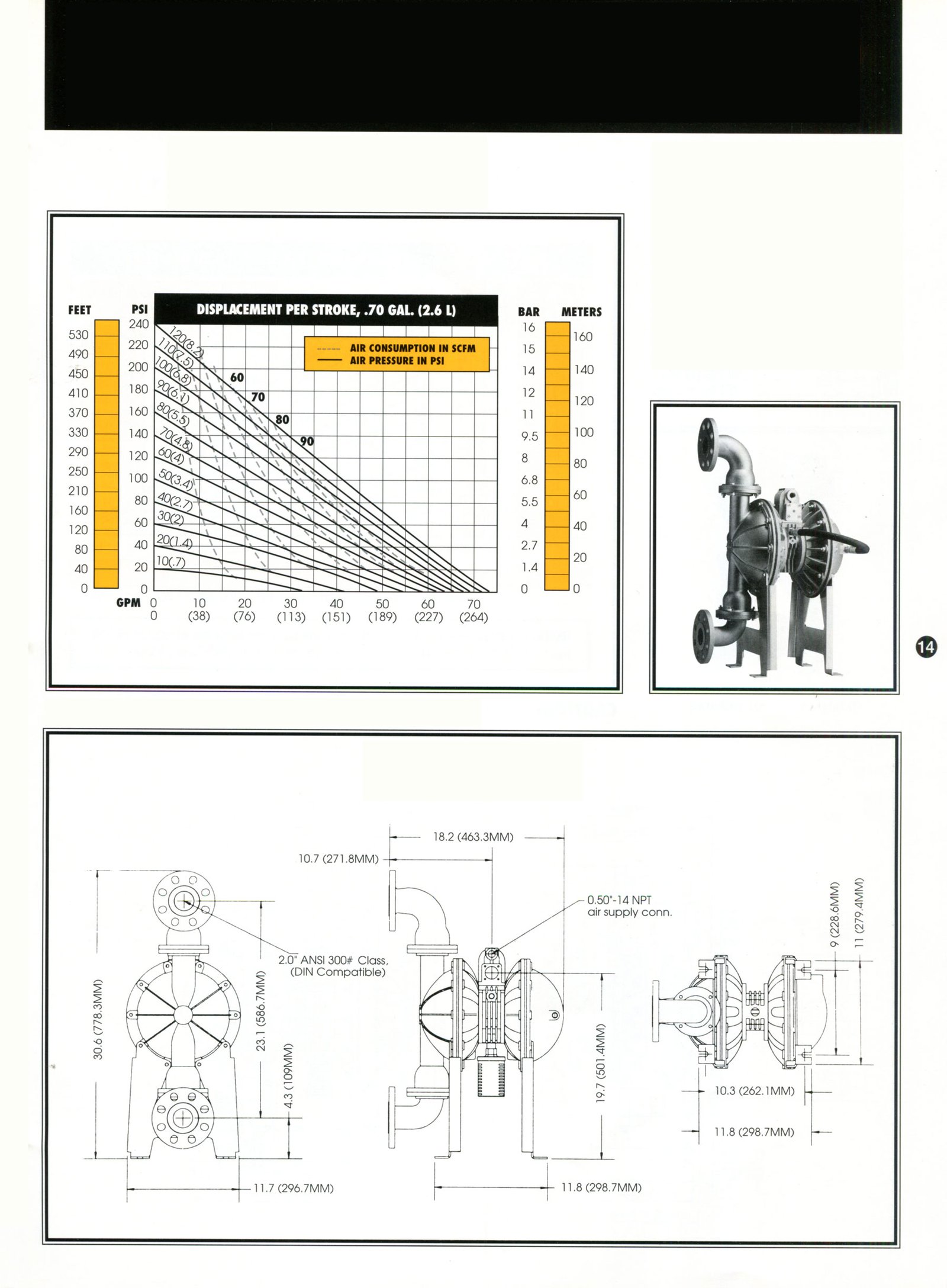

E4/K ELIMA-MATIC 1 1/2”

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable To .....0-72 gpm (0 272 lpm)

PORT SIZE

Inlet ..l.50" ANSI/DIN Flanged

Discharge ........l .50" ANSI/DIN Flanged

AIR INLET

.......... . ..0.50" NPT

AIR EXHAUST

..... ..0.75" NPT

SUCTION LIFT

.....l5' Dry/25' Wei (4.57m/7.62m)

Teﬂon"..... l0' Dry/20' Wet (3.05m/6.09m))

MAX. PARTICLE SIZE

(Diameter) ..................0.1875"(4.76mm)

SHIPPING WEIGHTS

Polypropylene ..32 lbs (14.5 kg)

Kynar .....45 lbs (20.04 kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

NOTE: For E4 pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%.

UL Listed Models Available.

CAUTION: Do not exce-e(l 125 psig (8.5 bars) air supply or liquid pressure.

DIMENSIONS

Consult. factory for certified drawings.

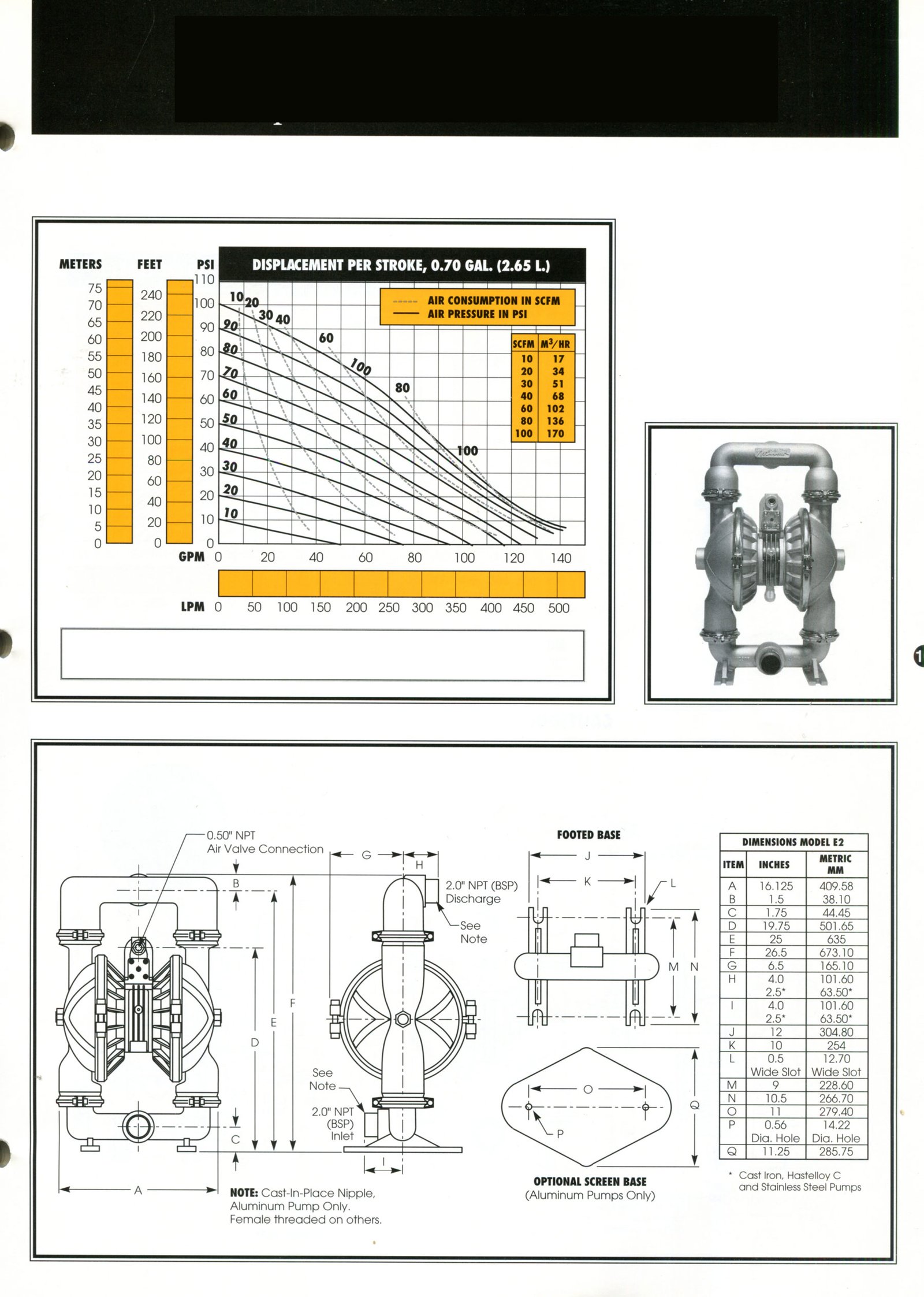

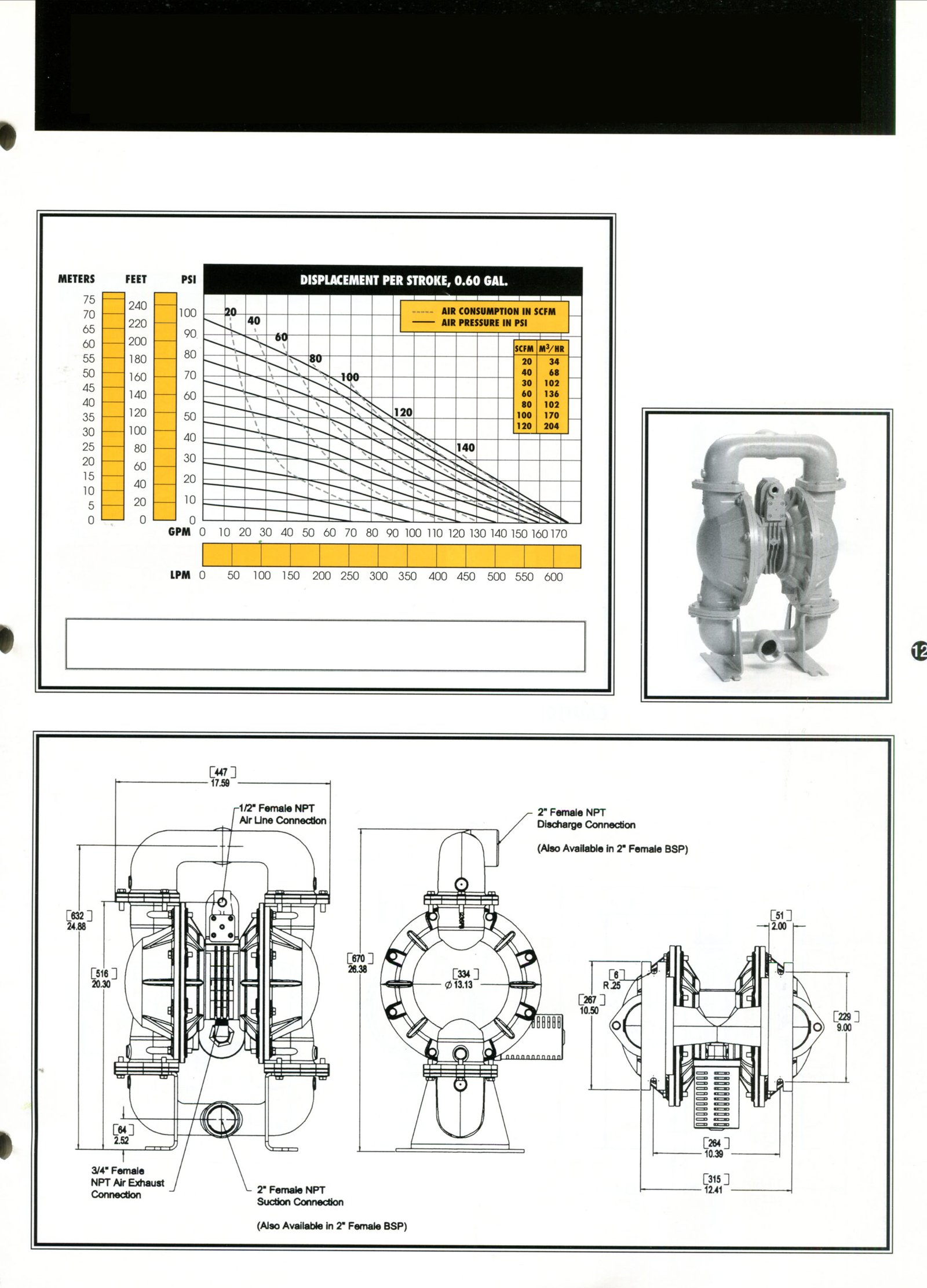

E2 ELIMA-MATIC 2”

Speciﬁcations And Performance

SPECIFICATIONS

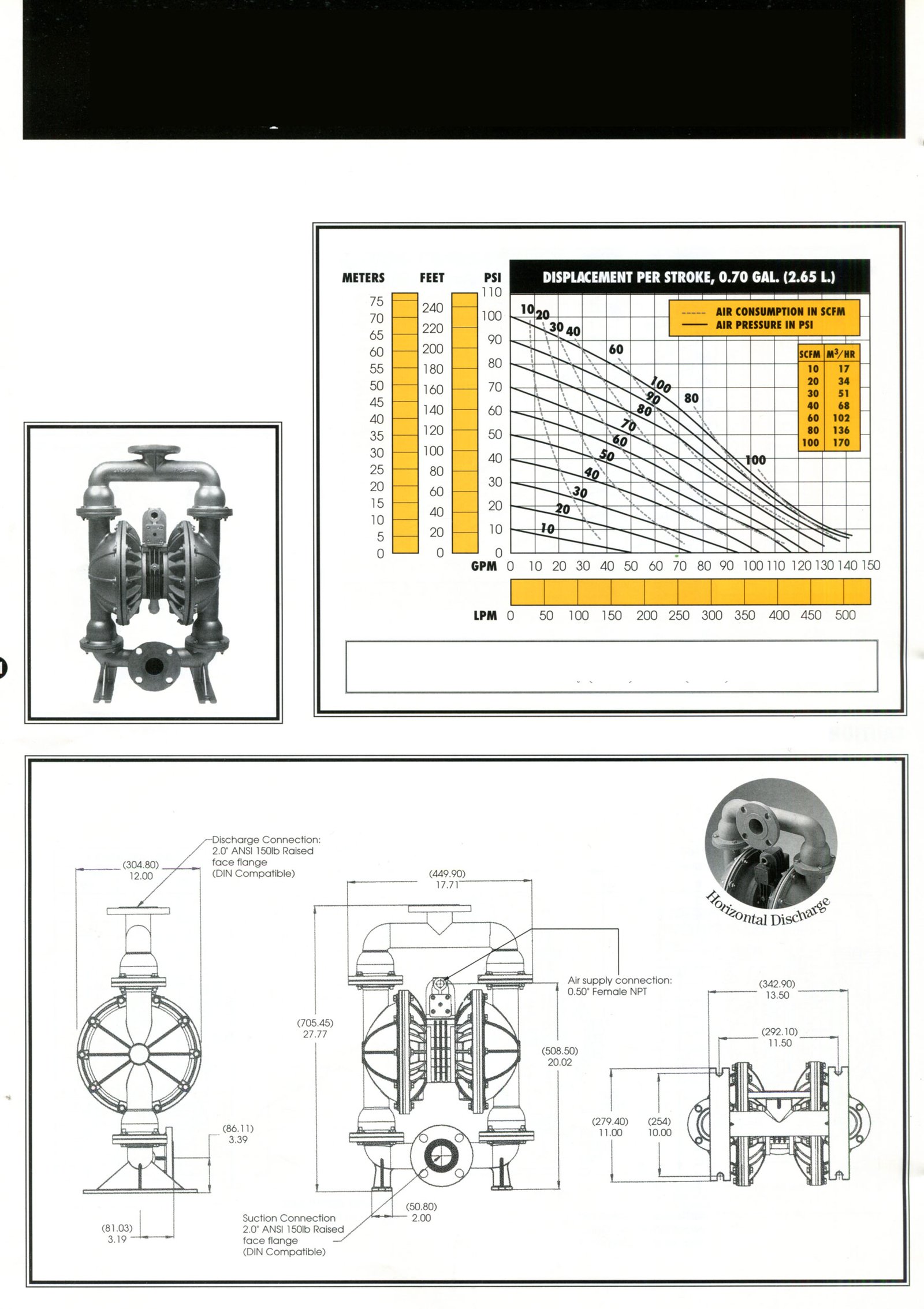

FLOW RATE

adjustable To .....0-155 gpm (586 lpm)

PORT SIZE

Inlet ..2.0” NPT (BSP)

Discharge ...... . ..2.0” NPT (BSP)

AIR INLET

. . . . ............... . ..0.50" NPT

AIR EXHAUST

.................. ..0.75" NPT

SUCTION LIFT

...............20' Dry/25' Wei (6.10m/7.62m)

...................l0' Dry/20' Wet (3.05m/6.l0m)

MAX. PARTICLE SIZE

(Diameter)......O.25"(6.35mm)

SHIPPING WEIGHTS

Aluminum...................70 lbs (31.75 kg)

Cast lron...................115 lbs (52.16 kg)

Hastelloy...................125 lbs (56.70 kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

NOTE: For E2 pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%. Suction lift is reduced to 10’ (3.05m) dry and 20'(6.10m) wet.

CAUTION: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.

DIMENSIONS

Consult. factory for certified drawings.

E2 ELIMA-MATIC BOLTED 2”

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable T0 .....0-1555 gpm (586 lpm)

PORT SIZE

Inlet ..2.0" ANSI, 150 lb class (DIN 50)

AIR INLET

.......... . ..0.50" NPT

AIR EXHAUST

..... ..0.75" NPT

SUCTION LIFT

.....10' Dry/20' Wei (6.09m/7.62m)

Teﬂon"..... l0' Dry/20' Wet (3.04m/6.09m))

MAX. PARTICLE SIZE

(Diameter) ..................0.25"(6.35mm

SHIPPING WEIGHTS

Stainless ..120 lbs (54 kg)

Hastelloy .....120 lbs (54 kg)

Cast lron ............. ..120 lbs (54 kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

NOTE: For pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%. Suction lift is reduced to 10’ dry (3.04m) and 20'(6.09m) wet.

UL Listed Models Available.

CAUTION: Do not excee 125 psig (8.5 bars) air supply or liquid pressure.

DIMENSIONS

Consult. factory for certified drawings.

E2 ELIMA-MATIC AL BOLTED 2”

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable To ..............0-174 gpm (685 Ipm)

PORT SIZE

Inlet
................................2.0” NPT (BSP)

and Discharge ...... . ...2.0” NPT (BSP)

AIR INLET

. . . . ............... . ..0.50" NPT

AIR EXHAUST

.................. ..0.75" NPT

SUCTION LIFT

...............20' Dry/25' Wei (6.096m 7.62m)

.....l0' Dry/20' Wet (3.05m/6.09m)

MAX. PARTICLE SIZE

(Diameter)......O.43"(11mm)

SHIPPING WEIGHTS

Aluminim...................73.5 lbs (33kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

NOTE: For pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%. Suction lift is reduced to 10’ (3.04m) dry and 20'(6.09m) wet.

CAUTION: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.

DIMENSIONS

Consult. factory for certified drawings.

E2 ELIMA-MATIC FLAP VALVE 2”

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable T0 .....0-180 gpm (681 lpm)

PORT SIZE

Inlet .. 2.0" Male NPT (BSP)

Discharge ........2.0" Male NPT (BSP)

AIR INLET

.......... . ..0.50" NPT

AIR EXHAUST

..... ..0.75" NPT

SUCTION LIFT

.....l0' Dry/10' Wet (3.48m/3.048m)

MAX. PARTICLE SIZE

(Diameter) ..................0.125"(28.57mm

SHIPPING WEIGHTS

Aluminum ..88 lbs (39.92 kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

NOTE: For E2 pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%.

CAUTION: Do not exceed(125 psig (8.5 bars) air supply pressure.

DIMENSIONS

Consult. factory for certified drawings.

E2-HP ELIMA-MATIC HIGH PRESSURE 2”

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable To ..............0-69 gpm (261 lpm)

PORT SIZE

Inlet and Outlet
................................2.0” ANS|, 300 lb class (DIN 50)

AIR INLET

. . . . ............... . ..0.50" NPT

AIR EXHAUST

.................. ..1.0" NPT

SUCTION LIFT

...............20' Dry/25' Wet (6.096m 7.62m)

MAX. PARTICLE SIZE

(Diameter)......O.25"(6.35mm)

SHIPPING WEIGHTS

Stainless...................91 lbs (41 kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

CAUTION: Do not exceed 100 psig (6.9 bars) air supply or liquid pressure.

DIMENSIONS

Consult. factory for certified drawings.

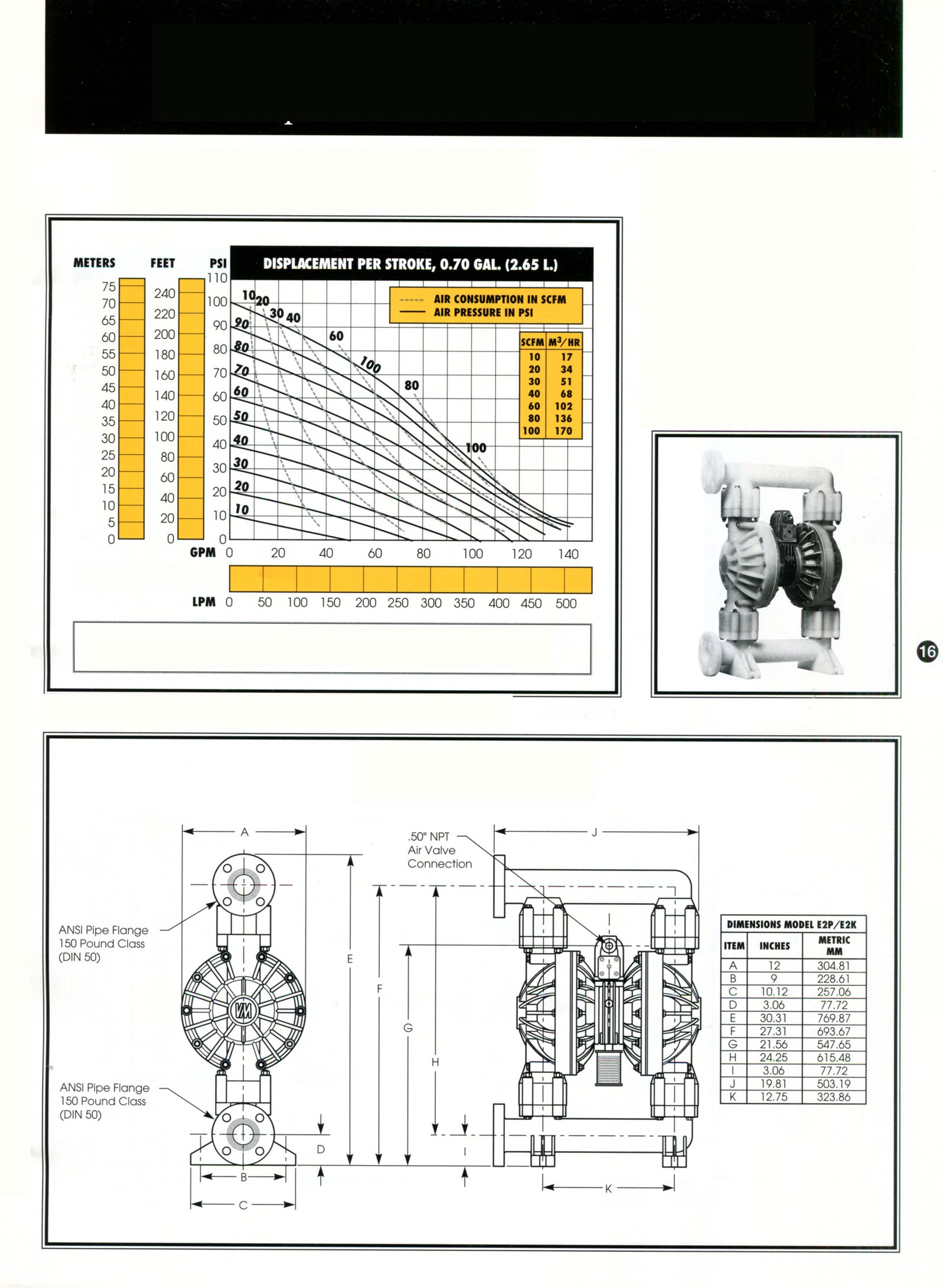

E2P/E2K ELIMA-MATIC 2"

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable To .....0-155 gpm (586 lpm)

PORT SIZE

Inlet ..2.0" ANSI, 150 Class (DIN 50)

Discharge 2.0" ANSI, 150 Class (DIN 50)

AIR INLET

.......... . ..0.50" NPT

AIR EXHAUST

..... ..0.75" NPT

SUCTION LIFT

20'Dry/25' Wei (6.10m/7.62m)

Teﬂon"..... l0' Dry/20' Wet (3.05m/6.l0m))

MAX. PARTICLE SIZE

(Diameter) 0.25"(6.35mm)

SHIPPING WEIGHTS

E2PA ..72 lbs (34.56 kg)

E2PS .....110.2 lbs (49.99 kg)

E2Ka ...... ..102.2 lbs (46.36 kg)

E2KS ..... ..136.2 lbs (61.78 kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

NOTE: For E2 pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%. Suction lift is reduced to 10’ (3.05m) dry and 20'(6.10m) wet.

Adjustable Inlet/Discharge.

CAUTION: Do not exceed 100 psig (6.9 bars) air supply pressure.

DIMENSIONS

Consult. factory for certified drawings.

E2P/E2K ELIMA-MATIC 2"

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable To .....0-155 gpm (586 lpm)

PORT SIZE

Inlet ..2.0" ANSI, 150 Class (DIN 50)

Discharge 2.0" ANSI, 150 Class (DIN 50)

AIR INLET

.......... . ..0.50" NPT

AIR EXHAUST

..... ..0.75" NPT

SUCTION LIFT

20'Dry/25' Wei (6.10m/7.62m)

Teﬂon"..... l0' Dry/20' Wet (3.05m/6.l0m))

MAX. PARTICLE SIZE

(Diameter) 0.25"(6.35mm)

SHIPPING WEIGHTS

E2PA ..72 lbs (34.56 kg)

E2PS .....110.2 lbs (49.99 kg)

E2Ka ...... ..102.2 lbs (46.36 kg)

E2KS ..... ..136.2 lbs (61.78 kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

figures by 20%. Suction lift is reduced to 10’ (3.05m) dry and 20'(6.10m) wet.

CAUTION: Do not exceed 100 psig (6.9 bars) air supply pressure.

DIMENSIONS

Consult. factory for certified drawings.

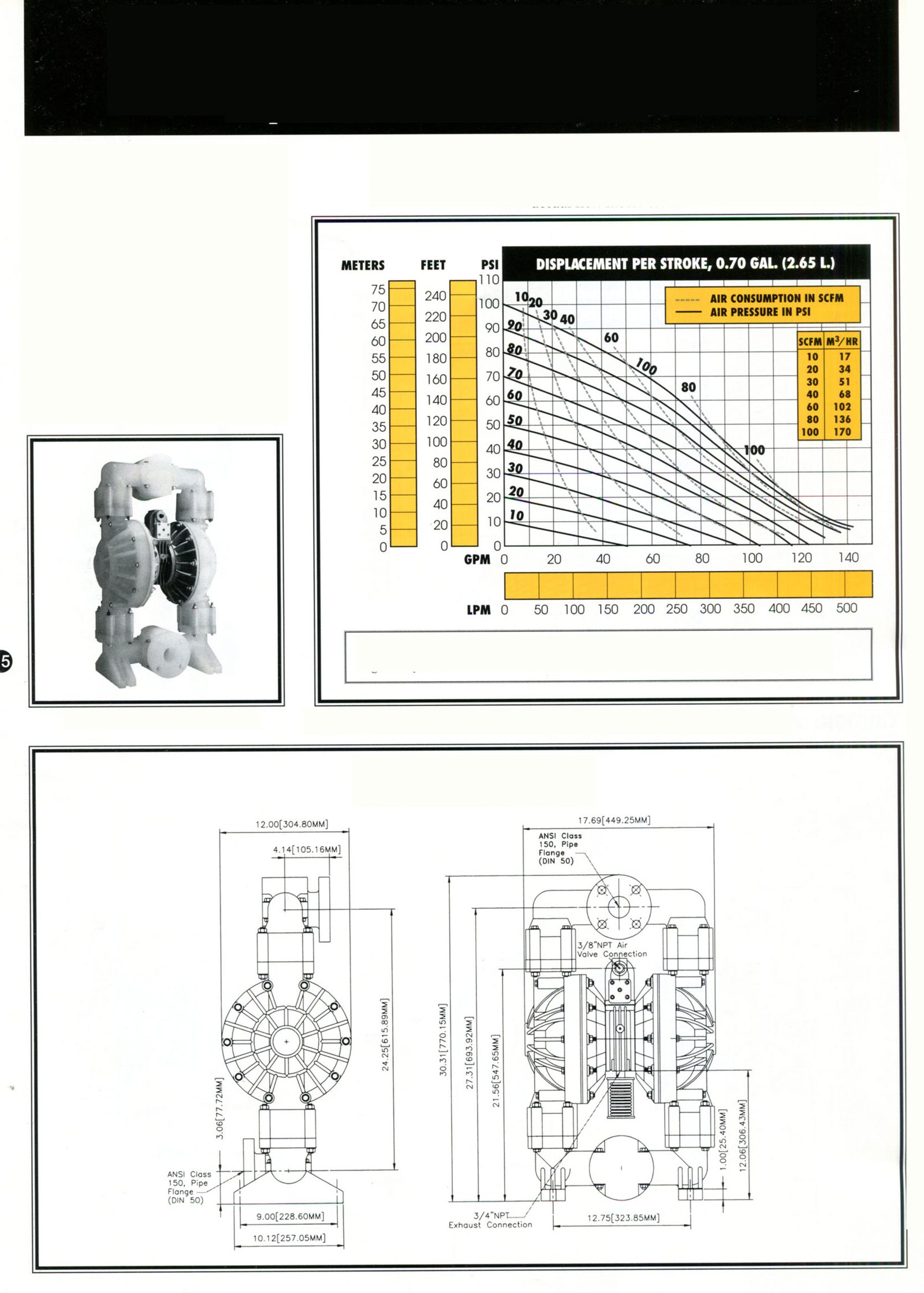

E3 ELIMA-MATIC 3”

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable To .....0-260 gpm (984 lpm)

PORT SIZE

Inlet ..3.0" NPT (BSP)

Discharge ........3.0" NPT (BSP)

AIR INLET

.......... . ..0.5" NPT

AIR EXHAUST

..... ..1.0" NPT

SUCTION LIFT

.....20' Dry/25' Wet (6.10m/7.62m)

Teﬂon"..... l0' Dry/20' Wet (3.05m/6.l0m))

MAX. PARTICLE SIZE

(Diameter) ..................0.375"(9.52mm)

SHIPPING WEIGHTS

Aluminum ..115 lbs (52.16 kg)

Cast lron Stainless ..210 lbs (95.25 kg)

Hastelloy C ..220 lbs (99.79 kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

NOTE: For E3 pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%. Suction lift is reduced to 10’ (3.05m) dry and 20'(6.10m) wet.

CAUTION: Do not exceed 125 psig (8.5 bars) air supply pressure.

DIMENSIONS

Consult. factory for certified drawings.

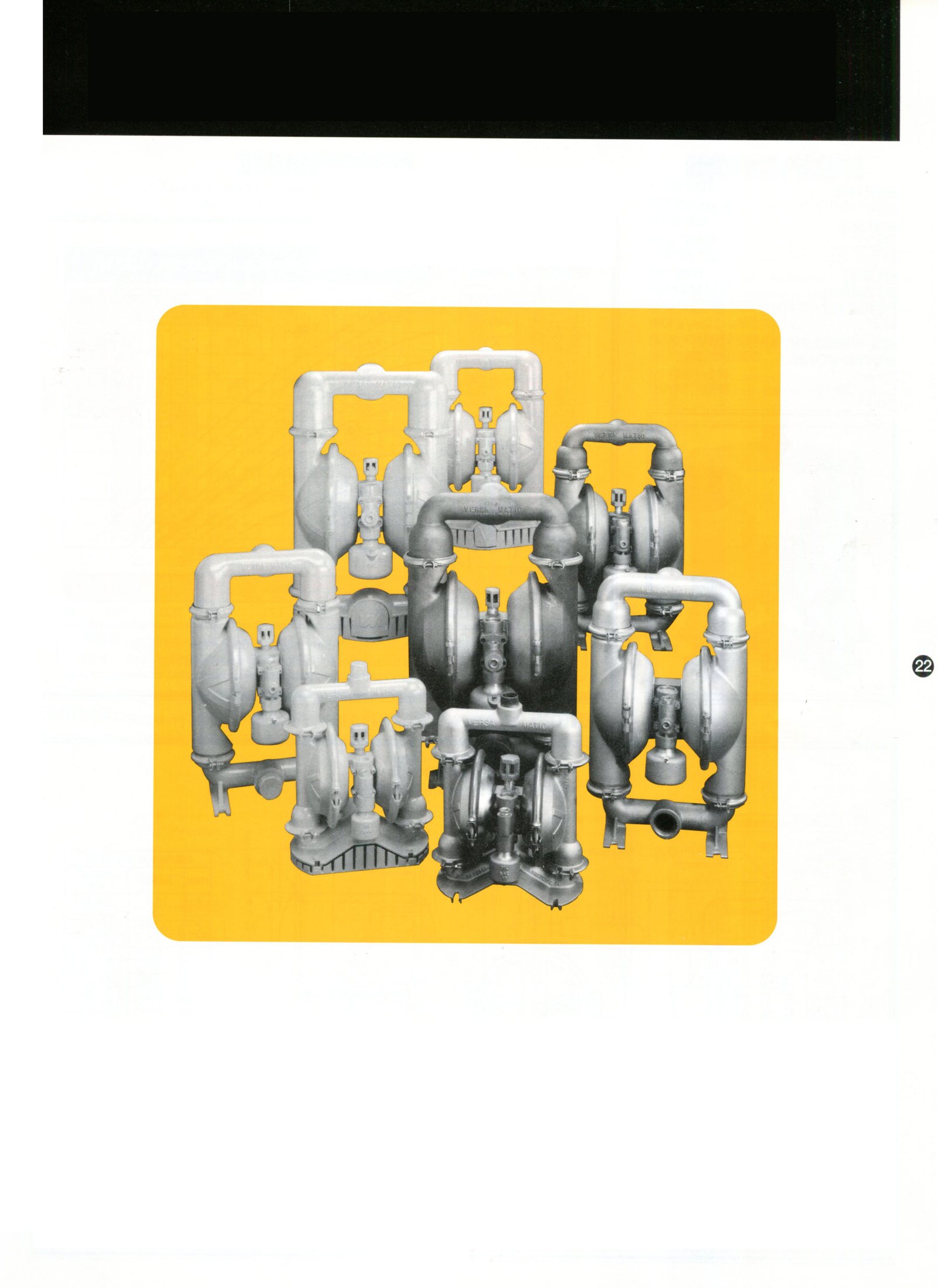

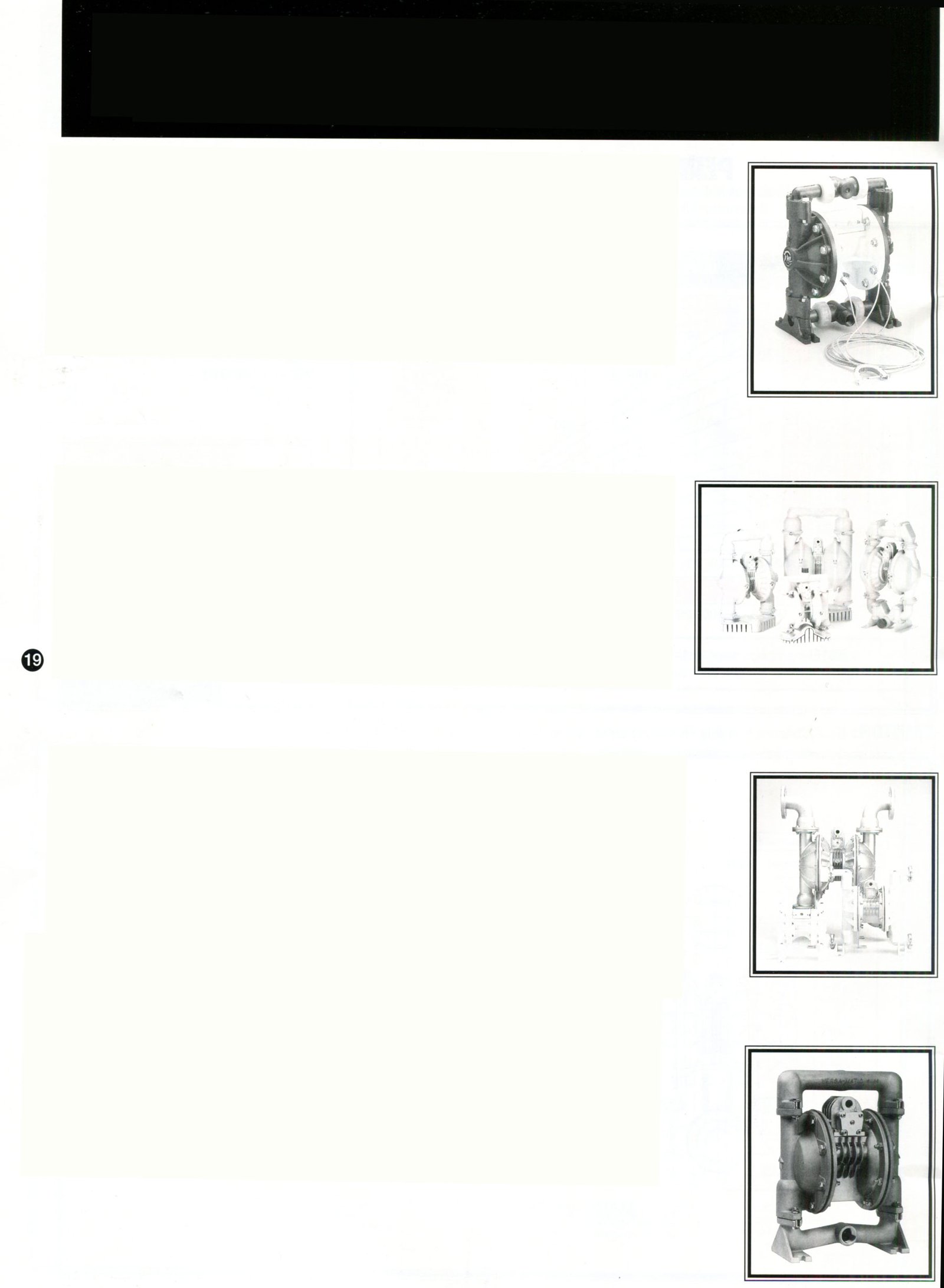

VM SPECIALTY PUMPS

With The Exclusive ELIMA-MATlC® Air Valve System

GRDIINDABLE ACETAL PUMPS :

The Groundable Acetal pump is constructed to accommodate grounding of a non-metallic pump. This feature allows the pump to safely transfer solvent, and other Volatile liquids without the danger of static electricity build-up. This pump has been tested by an independent laboratory to ensure quality and safe- ty. The E5 Acetal pump passed both the VAN deGRAAF Generator Test and the Unrestricted Flow Test. For written test results and test criteria information please contact the Versa—Matic“° Pump Company directly.

SOLIDS HANDLING PIIMPS

Versa-Matic“‘> screen mounted and flap valve pumps are designed to pump mediums which contain large solids. Used extensively in the construction and mining industries these pumps can handle semi—solids up to 1.125” (28.57mm) in diameter. The screen mounted bases screen the fluid to prevent larger solids from inhibiting the operation of the pump. They can be fully submerged for use in pits, sumps or other bodies of fluid (see instructions for submerged installa- tion on page 2). These pumps can deliver flows up to 260 gpm (983 lpm) mak- ing quick work of many difficult applications.

SPLIT MANIFOLD PUMPS

Versa—Matic‘“> split manifold pumps enable one pump to do the job of two sepa- rate pumps. Often used for circulating inks in the printing industry, split mani- fold pumps offer great cost savings by circulating two tanks at the same time with only one pump. The pumps construction and operation are the same as a standard pump except the flow from each side of the pump is directed out of separate manifold discharge elbows instead of one center discharge port. Contact Versa—Matic“" for application and installation options. Available in 1/2”, 1” and 2” sizes.

IIL LISTED PIIMPS

The UL Listed pumps have been tested and listed by Underwriters Laboratories for safe, spark-free flammable liquid transfer applications such as diesel fuel, kerosene, gasoline, aviation fuel, alcohol, and many others. They are available in a variety of different wet end materials of construction.

VM FOOD PROCESSING PUMPS

With The Exclusive ELIMA-MATlC® Air Valve System

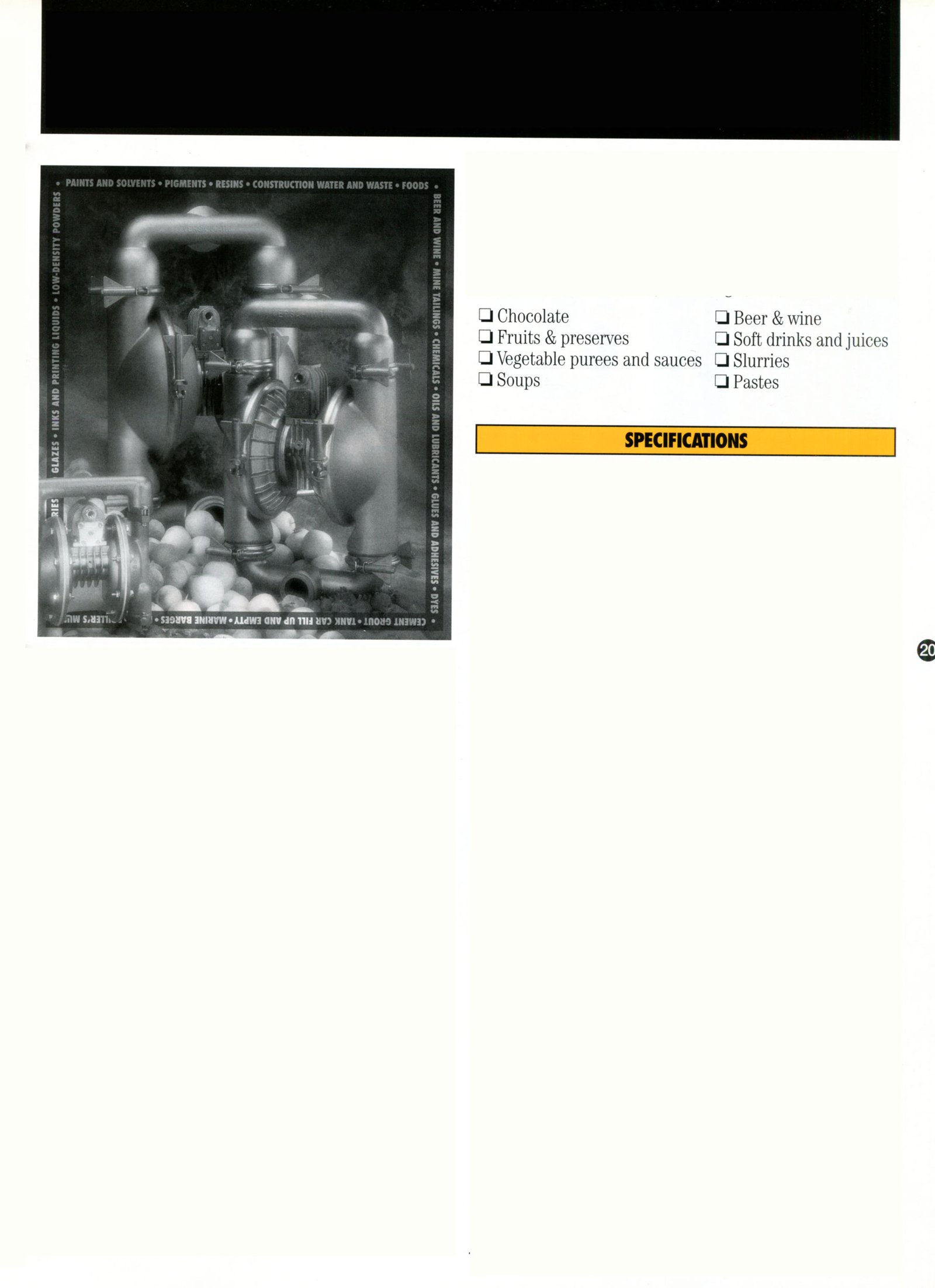

APPLICATION VERSATILITY :

ELIMA-MATIC Food Processing Pumps can handle anything from Water to 90% solids in a suspended slurry easily and efficiently. They are ideal for virtually every application in the food, beverage, pharmaceutical and cosmetic industries, including:

FOR THE FOOD, BEVERAGE, PHARMACEUTICAL AND COSMETIC INDUSTRIES

VERSA-MATICP ELIMA-MATIC” Food Processing Stainless Steel Pumps bring the advantages of the ELIMA-MATIC” Air Valve System to the food, beverage, pharmaceutical and cosmetic industries. True to their name, these pumps virtually eliminate intermittent pump stalling caused by air valve system freeze—ups. In addition to being anti—stalling and non—icing, ELIMA-lVlATlC”“ pumps are also lubrication—free — so there is never any danger of contaminating sensitive products with lubricants. But that’s only one of the ways that our investment cast 316 stainless steel pumps meet the special needs of these processing industries.
Currently available in 1”, 1 1/4”, 2” and 3” sizes, ELIMA-MATIC“ Food Processing Pumps can pump abrasive and viscous media solids economically, and protect shear—sensitive fluids very effectively. Even the most sensitive foods can be transferred hygienically and without shearing. Our pumps are ideally suited for filling machines because they can operate against a closed discharge line without increased heat generation, wear or leakage.
All ELIMA-MATIC“ Pumps are self—priming, can handle infinite variable flows and are capable of operating as low as one stroke per minute. The pump’s simple, economical design makes for easy cleaning, steam sterilization and repair.

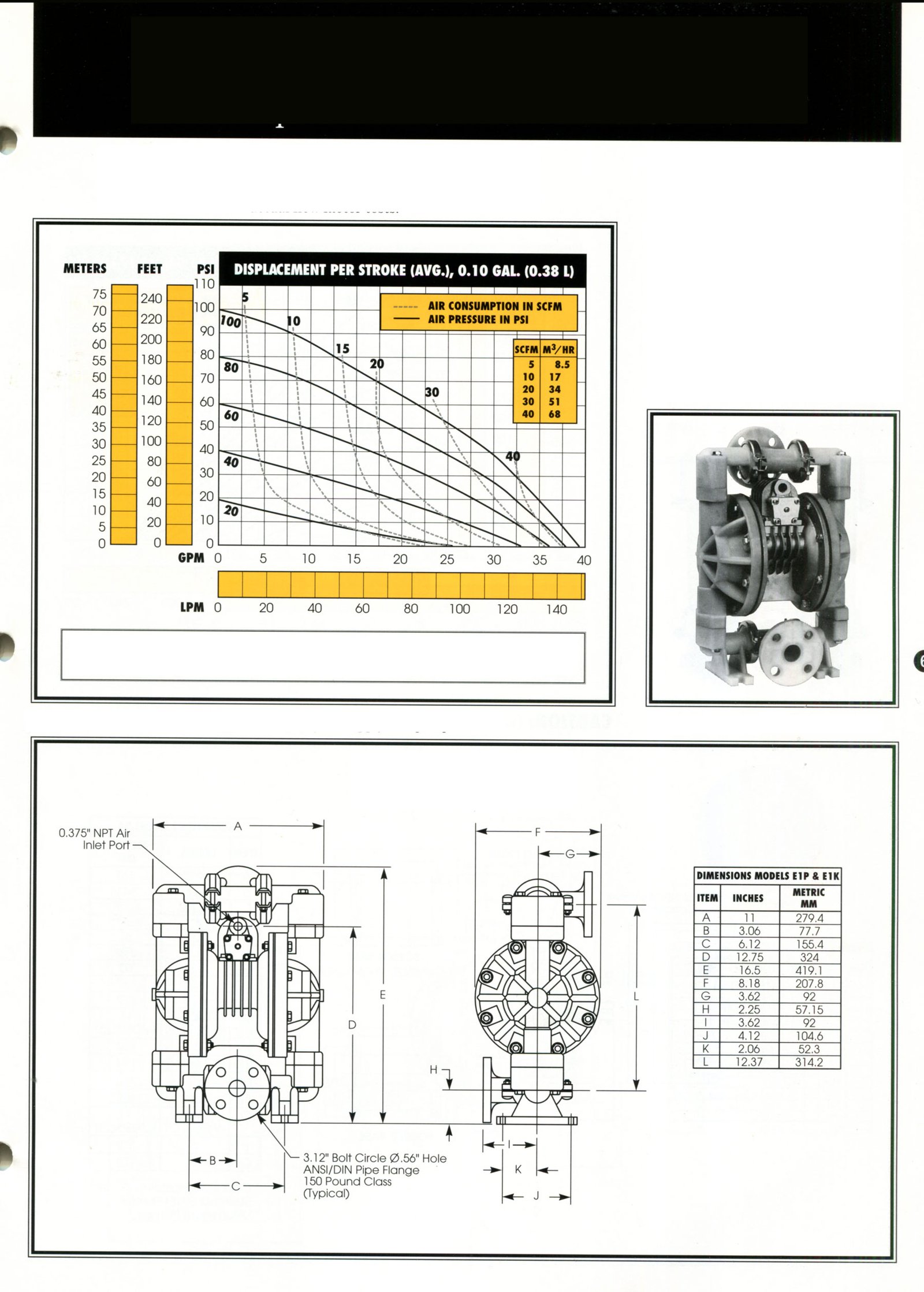

1” ELIMA-MATIC STAINLESS STEEL

___________________________________________________

FLOW RATE

adjustable To .............. 0-35 gpm (132 lpm)

PORT SIZE

Inlet and Discharge .......................1.5" Tri—Clamp

AIR INLET

. . . . ............... . .. 0.25“ NPT

AIR EXHAUST

.................. ..0.50" NPT

SUCTION LIFT

...............15’ Dry/25’ Wet (4.57m/7.62m)

MAX. PARTICLE SIZE

(Diameter)......O.l25"(3.l 7mm)

SHIPPING WEIGHTS

................... 42 lbs (19.07 kg)

___________________________________________________

1 1/4" ELIMA-MATIC STAINLESS STEEL

___________________________________________________

FLOW RATE

adjustable To .............. 070 gpm (265 lpm)

PORT SIZE

Inlet and Discharge .......................2.0" Tri—Clamp

AIR INLET

. . . . ............... . .. 0.50“ NPT

AIR EXHAUST

.................. ..0.75" NPT

SUCTION LIFT

...............15’ Dry/25’ Wet (4.57m/7.62m Wet)

MAX. PARTICLE SIZE

(Diameter)......O.l875"(4.76mm)

SHIPPING WEIGHTS

................... 57 lbs (25.87 kg)

___________________________________________________

2" ELIMA-MATIC STAINLESS STEEL

___________________________________________________

FLOW RATE

adjustable To .............. 0~l55gpm (586 lpm)

PORT SIZE

Inlet and Discharge .......................2.5” Tri—Clamp

AIR INLET

. . . . ............... . .. 0.50" NPT

AIR EXHAUST

.................. ..0.75" NPT

SUCTION LIFT

...............20’ Dry/25’ Wet (6.l0m/7.62m)

MAX. PARTICLE SIZE

(Diameter)......0.25 (6.85mm)

SHIPPING WEIGHTS

................... 115 lbs (52.21 kg)

___________________________________________________

3" ELIMA-MATIC STAINLESS STEEL

___________________________________________________

FLOW RATE

adjustable To .............. 0260 gpm (983 lpm)

PORT SIZE

Inlet and Discharge .......................3.0" Tri—Clamp

AIR INLET

. . . . ............... . .. 0.50“ NPT

AIR EXHAUST

.................. ..1.0” NPT

SUCTION LIFT

...............20’ Dry/25’ Wet (6.l0m/7.62m)

MAX. PARTICLE SIZE

(Diameter)......0.375 (9.52mm)

SHIPPING WEIGHTS

................... 210 lbs (95.34 kg)

___________________________________________________

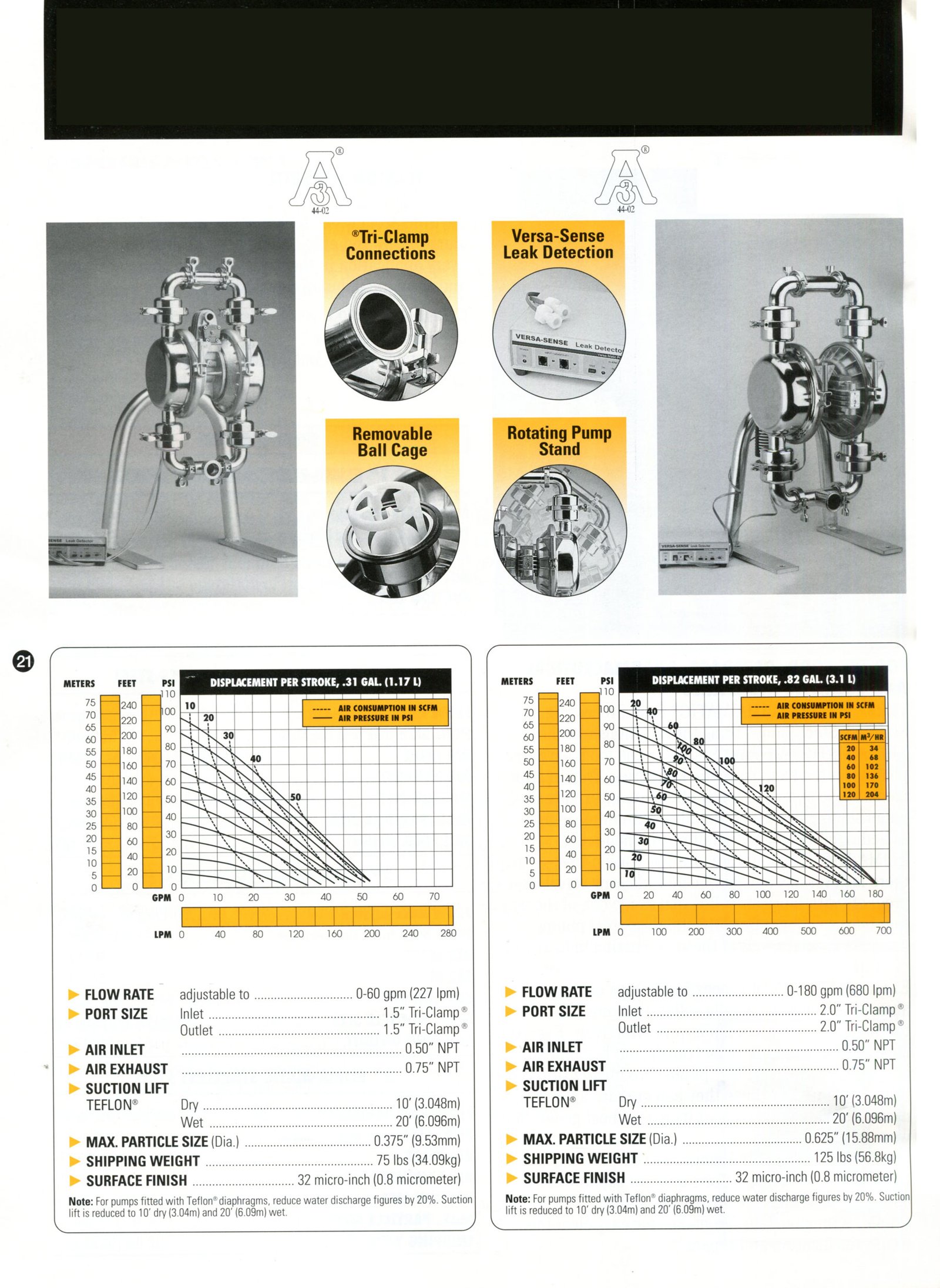

VM 1 1/2" and 2" SANITARY PUMPS

With The Exclusive ELIMA-MATlC® Air Valve System

E4 1 1/2” SANITARY PUMP

FEATURES

E2 2" SANITARY PUMP

All Sanitary Pumos use bonded Versa-Tuff Teflon diaphragm

CLASSIC VERSA-MATIC PUMPS

V-SERIES

The classic V-Series design for years has provided low cost, reliable service to customers worldwide. The V-Series design has been the industry standard since its inception. These pumps can handle almost any liquid up to 90% solids with confidence. V-Series pumps excel in a variety of applications, delivering high ﬂows and high discharge pressures without failure. The V-Series Pumps have parts interchangeability with Wilden® M4, M8, and M15 metallic pumps. Like the Wi1den® pumps, V-Series pumps can also be upgraded with non-stalling, anti-icing, lubrication-free Elima-Mat1'c® center sections.

V4

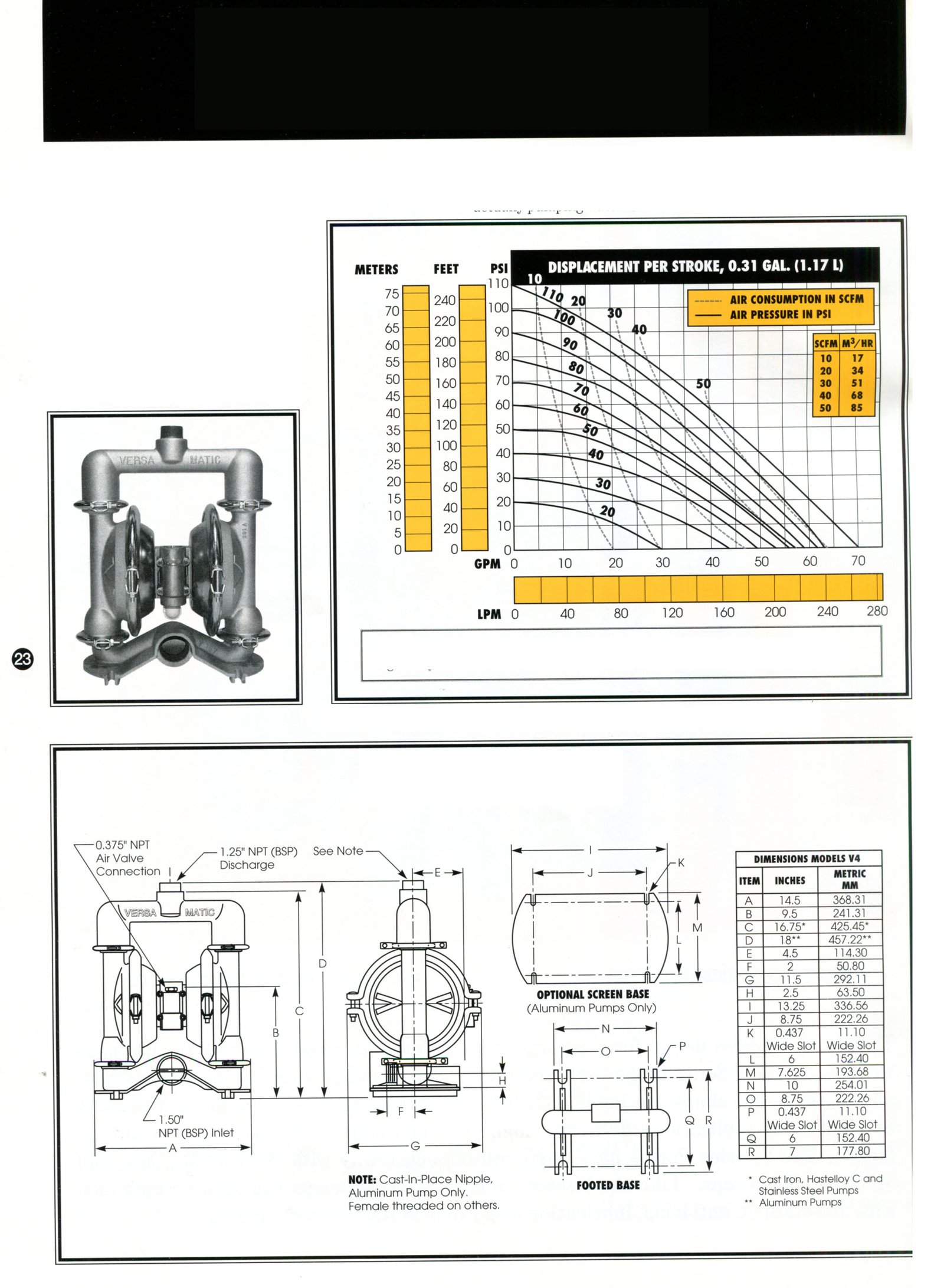

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable To .....0-70 gpm (265 lpm)

PORT SIZE

Inlet ..1.50" Female NPT (BSP)

Discharge ........1.25" Female NPT (BSP)

AIR INLET

.......... . ..0.375" NPT

AIR EXHAUST

..... ..0.75" NPT

SUCTION LIFT

.....20' Dry/25' Wet (6.10m/7.62m)

Teﬂon"..... l0' Dry/20' Wet (3.05m/6.l0m))

MAX. PARTICLE SIZE

(Diameter) ..................0.1875"(4.76mm)

SHIPPING WEIGHTS

Aluminum ..41 lbs (18.61 kg)

Cast lron. Hastelloy C Stainless 57 lbs (25.87 kg)

PERFORMANCE

Volumes indicated on the chart below were determined by
actually pumping water into calibrated tanks

NOTE: For E4 pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%. Suction lift is reduced to 10’ (3.05m) dry and 20'(6.10m) wet.

CAUTION: Do not exceed(125 psig (8.5 bars) air supply pressure.

DIMENSIONS

Consult. factory for certified drawings.

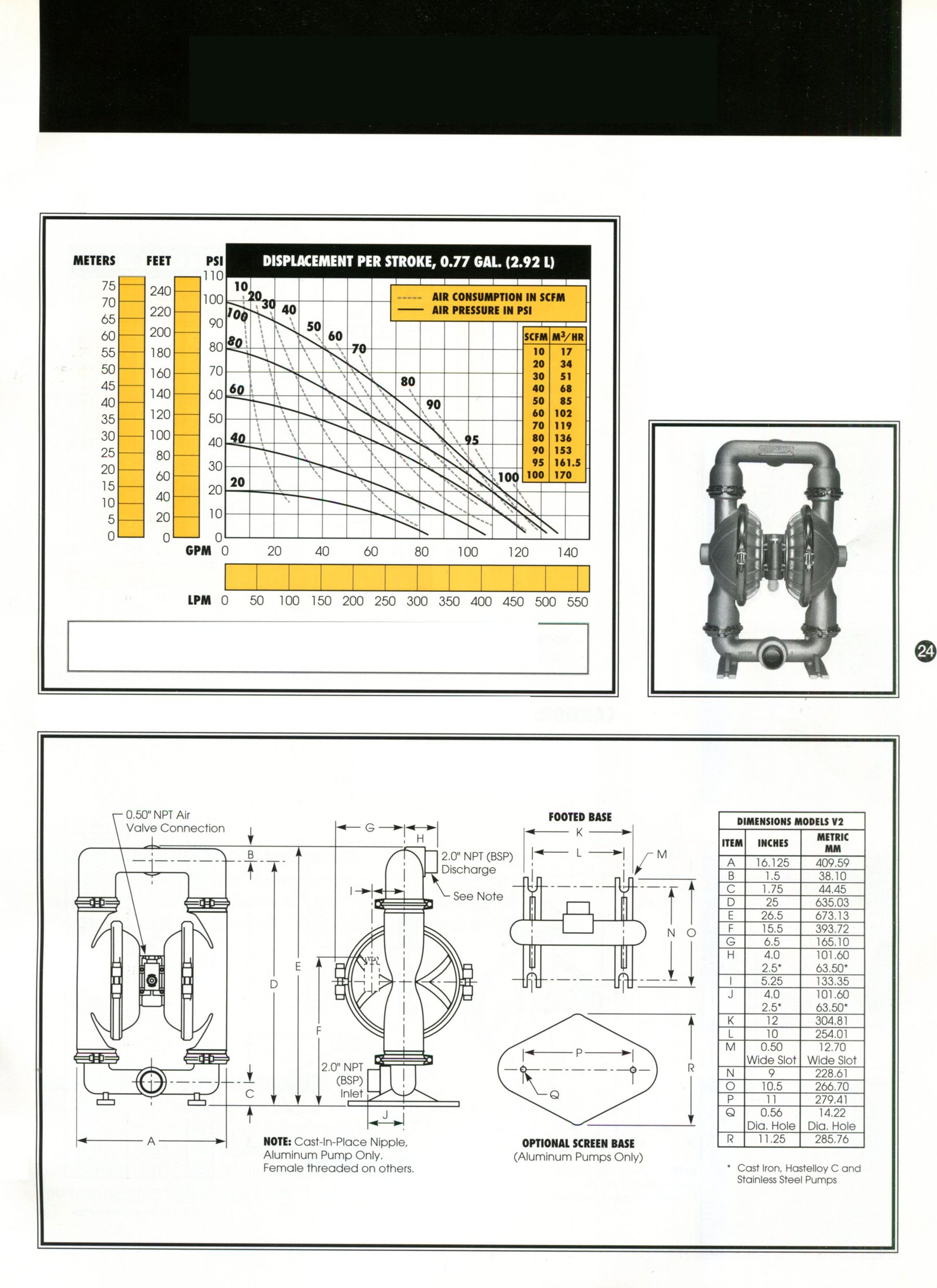

V2

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable To .......0-138 gpm (522 lpm)

PORT SIZE

Inlet
................................2.0” NPT (BSP)

Discharge ....................2.0” NPT (BSP)

AIR INLET

. . . . ............... . ..0.50" NPT

AIR EXHAUST

.................. ..0.75" NPT

SUCTION LIFT

...............20' Dry/25' Wet (6.1m 7.62m)

teflon.....l0' Dry/20' Wet (3.05m/6.l0m)

MAX. PARTICLE SIZE

(Diameter)......O.25"(6.35mm)

SHIPPING WEIGHTS

Aluminum...................70 lbs (31.78kg)

Hastelloy....................125 lbs (56.75 kg)

PERFORMANCE

Volumes indicated on the chart below were determined by actual flow meter tests

NOTE: For E1P/E1K pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%. Suction lift is reduced to 10’ (3.05m) dry and 20'(6.10m) wet.

CAUTION: Do not exceed 100 psig (6.9 bars) air supply or liquid pressure.

DIMENSIONS

Consult. factory for certified drawings.

V3

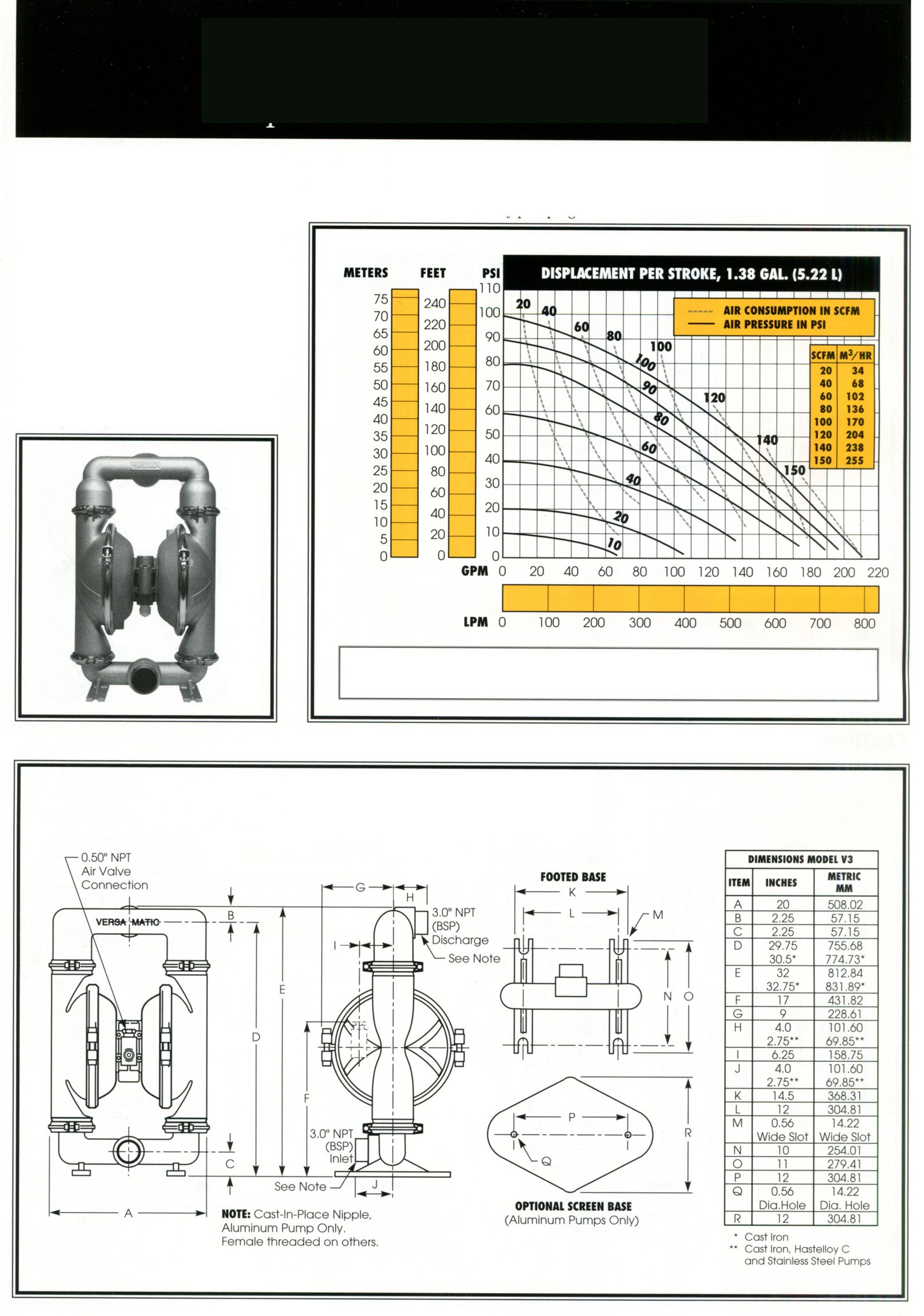

Speciﬁcations And Performance

SPECIFICATIONS

FLOW RATE

adjustable To .....0-210 gpm (794 lpm)

PORT SIZE

Inlet ..3.0" NPT (BSP)

Discharge ........3.0" NPT (BSP)

AIR INLET

.......... . ..0.5" NPT

AIR EXHAUST

..... ..1.0" NPT

SUCTION LIFT

.....20' Dry/25' Wei (6.10m/7.62m)

Teﬂon"..... l0' Dry/20' Wet (3.05m/6.10m))

MAX. PARTICLE SIZE

(Diameter) ..................0.375"(9.52mm)

SHIPPING WEIGHTS

Aluminum ..115 lbs (52.21 kg)

Cast iron, Stainless ...210 lbs (95.34 kg)

Hastelloy ......... ..220 lbs (99.88 kg)

PERFORMANCE

Volumes indicated on the chart below were determined
by actually pumping water into calibrated tanks

NOTE: For V3 pumps fitted with Teflon diaphragms, reduce water discharge
figures by 20%. Suction lift is reduced to 10’ (3.05m) dry and 20'(6.10m) wet.

CAUTION: Do not exceed(125 psig (8.5 bars) air supply pressure.

DIMENSIONS

Consult. factory for certified drawings.

CLASSIC VERSA-MATIC PUMPS

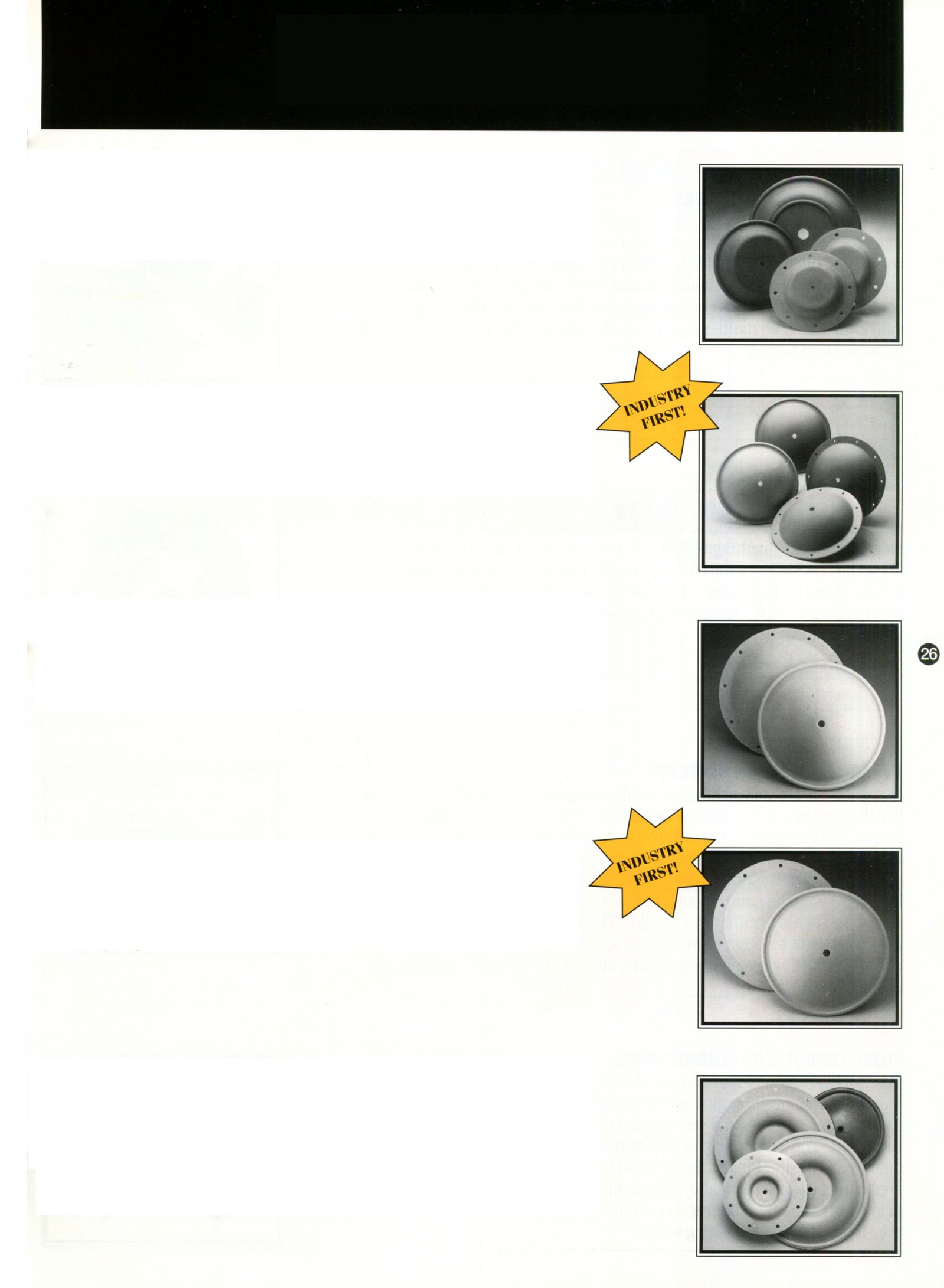

VERSA-RUGGED VR" SERIES DIAPHRAGMS

Versa-Matic’s high quality fabric reinforced standard rubber diaphragms. They were designed to reduce maintenance and repair costs. Interchangeable with most Wilden“ pump models..

VERSA-DOME® DIAPIIRAGMS

Their simple smooth dome shape eliminates complex angles, delivering the flex across the entire face of the diaphragm. The distribution of ﬂex allows them to last up to 300 % longer than standard diaphragms. They are also interchangeable with Wilden“ pumps.

EDA IIYTREL THERMOPLASTIC DIAPIIRAGMS

FDA Hytrel“‘° food grade diaphragms are approved for use with food and dairy mediums. FDA Hytrel” diaphragms are also excellent in abrasive product transfer applications.

TPE-Xl THERMOPLASTIC DIAPHRAGMS

Versa-Matic is the innovator of thermoplastic XL diaphragms. It has much of the chemical resistance of Teflon; but costs significantly less. It is extremely abrasion resistant. XL is also interchangeable with Wilden“ pumps.

VERSA-TUFF TEFLON DIAPHRAGMS

The Versa-Tuff Teflon diaphragms are a single piece diaphragm combin-ing the chemical resistance of Teflon with the flex-life of rubber. They offer three times the burst strength of standard Teflon overlays. They have been tested to over 23 million cycles without failure. Interchangeable with most Wilden 1 1/4”, 2” and 3” metallic pumps.

PUMP ACCESSORIES

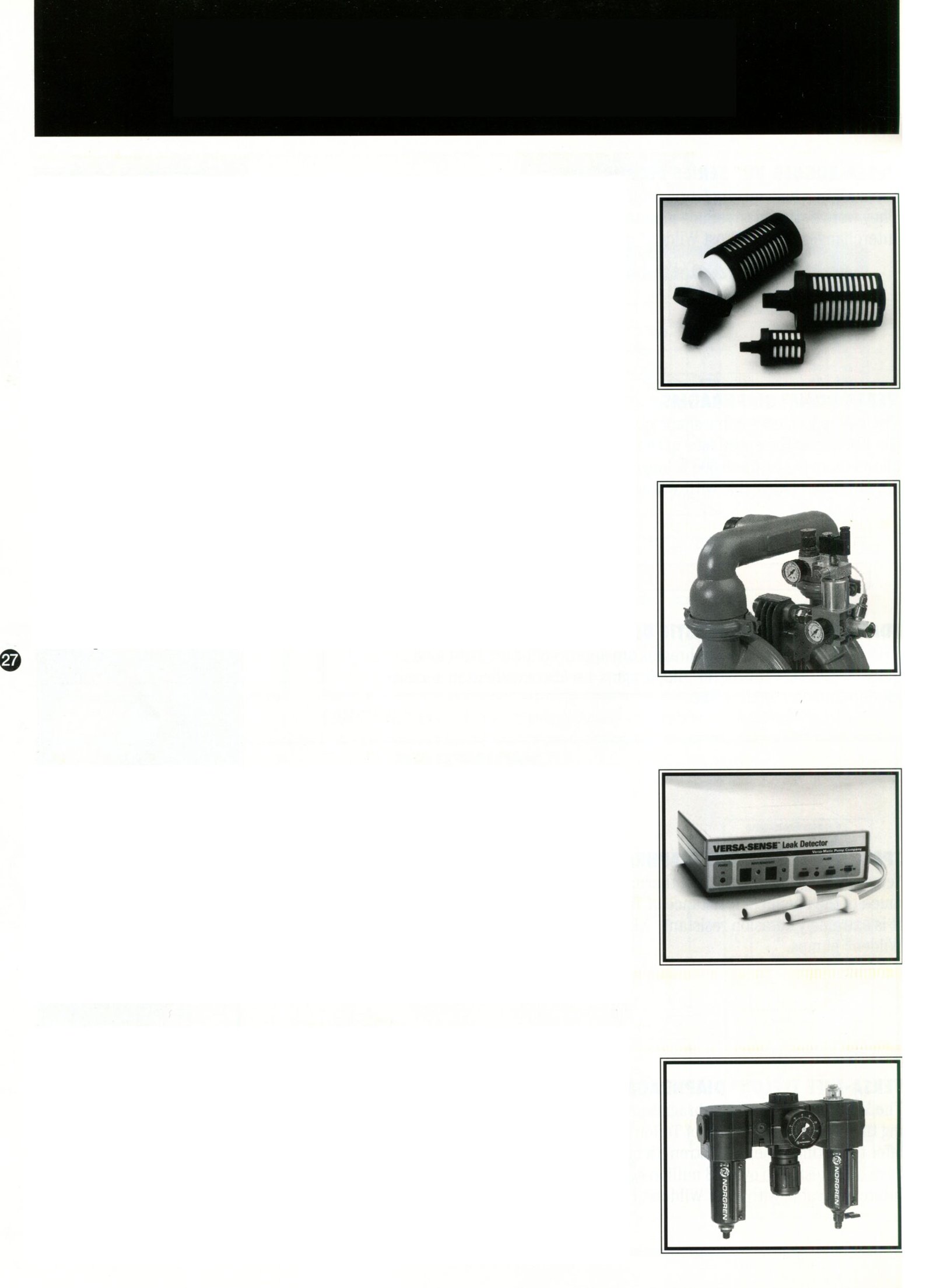

3M" PNEUMATIC MIIEHERS

3M pneumatic mufflers can be adapted to fit most AODD pumps in the industry, and other air-operated equipment. They provide excellent noise reduction below EPA standards, with no performance loss. They are excel- lent in spark—free applications because they do not hold a static charge, and contain no metal. Unlike competitors’ mufflers, they are extremely chemi- cally resistant. The muffler inserts are also replaceable as well as washable for added cost savings..

ANTI-SHOCK VALVES

The Anti—Shock Valve enables the pump to start smoothly and gradually, and thus eliminate shock load conditions which could cause damage to diaphragms and other moving parts. With a smooth start, the risk for vibration damages on the pipe system and the pipe fastening will be minimized. The risk for cavitation during start-up is also minimized with a smooth start, especially when pumping highly viscous products.

VERSA-SENSE LEAK DETECTOR

Using the capacitance change principle, compared to competitors models which sense by conduction, the Versa—Sense"'-“ has a much broader sensing range. The competitions leak detection need high levels of water, or ionic solutions to be effective sensing devices, where the Versa—Sense”‘ can be used on a wider variety of mediums with confidence. The Versa—SenseT-“ instantly shuts the pump down when a leak is sensed, sounds a 90 decibel alarm, and lights a brilliant LED light. The Versa—Sense“‘ can also simulta- neously start up another pump in series, so that continuous processes are not interrupted. Since it is adjustable, false alarms are not a problem, even with wet air.

FILTER/REGULATOR/lllBRICATORS

The Norgrenf’ inline Filter/Regulator/Lubricator (FRL) is designed to enhance pump performance, and reduce maintenance costs. The FRL is used to filter particles and water out of the compressed air coming in to the pump. The FRL is also used to control the air pressure to the pump quickly and easily. Finally the FRL can optimize pump performance in applications where lubrication is recommended. The (FRL) controls the amount of lubricant reaching the pump through the airline, eliminating over lubrication and reducing wear.

VMPUMP

Materials Of Construction, Temperature Limits And Compatibility

MATERIALS OF CONSTRUCTION - PUMPS

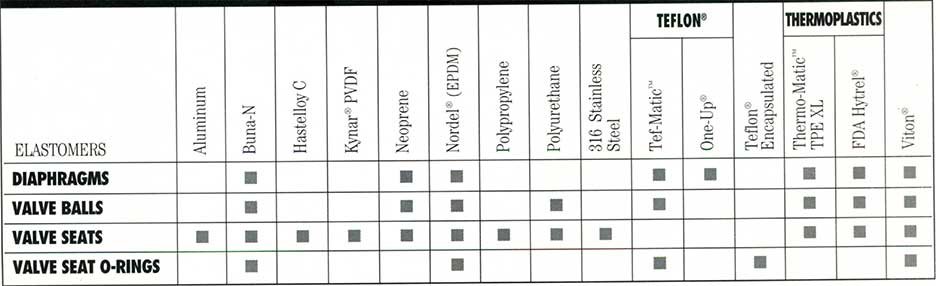

DIAPHRAGMS, VALVE BALLS, VALVE SEATS & VALVE SEAT O-RINGS

TEMPERATURE LIMITS*

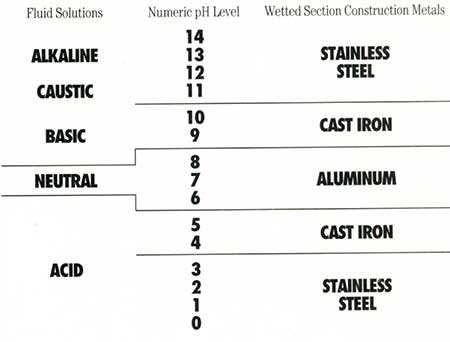

WETTED MATERIAL COMPATIBILITY

1. Incorrect o-ring placement
2. Inner diaphragm plate installed backwards
3. Deadhead (system pressure meets or exceeds air supply pressure)
4. Air valve or center block gaskets installed incorrectly

1. Over lubrication
2. Lack of air (line size, PSI, CFM)
3. Centering of spool (“V" series)
4. Worn o-rings
5. Air porting in center block is plugged
6. Wrong type of lubrication (attack on o~rings) — see Operating Manual
7. Debris in air valve
8. Clogged manifolds
9. Incorrect o-ring placement
I0. Deadhead (system pressure meets or exceeds air supply pressure)
ll. Closed discharge valve

1. Cavitation on suction side
2. Valve ball(s) not seating properly or sticking
3. Valve ball(s) missing (pushed into pump/thermal expansion or missing)
4. Valve ball(s)/seat(s) damaged or attacked by product (swelling, shrinking, etc.)
5. Vapor pressure
6. Clogged suction line

1. Over lubrication/under lubrication
2. Wrong type of lubrication
3. Icing
4. Clogged manifolds
5. Deadhead (system pressure meets or exceeds air supply pressure)
5. Cavitation on suction side
6. Cavitation on suction side
7. lack of air (line size, PSI, CFM)
8. Worn o-rings
9. Vapor pressure
IO. Incorrect pump size

1. Diaphragm failure — product leaking out exhaust
2. Diaphragm plates loose — product leaking out exhaust
3. Clamp bands loose —- product leaking out clamp bands
4. Clamp bands stretched — product leaking out clamp bands
5. Teflon gasket tape ruined
6. Excessive positive suction pressure — product leaking around many
or all clamp bands
7. Diaphragms stretched around er hole or bolt holes
8. Clamp bands not seated properly
9. Excessive air supply pressure

1. Cavitation
2. Excessive flooded suction pressure
3. Misapplication (chemical/physical incompatibility)
4. Wrong type of lubrication (attack on air side)
5. Incorrect diaphragm plates
6. Diaphragm plates on backwards
7. Incorrect shaft with corresponding elastomer
8. Start up full air pressure
9. Excessive dry running at high air pressure

1. Build up of solids in water chamber
2. Elima—Matic pump missing bumper washers (see Operating Manual)
3. Loose diaphragm plates

Pump Cycles once and stops

Pump will not operate

Pump cycles and will not
prime or low flow

Pump running sluggish/stalling

Product leaking through
exhaust or around clamp bands

Premature diaphragm failure

Breaking and bending shafts

PROBLEMS

1. Reinstall o~rings in correct position
(see Operating Manual for assistance)
2. Reinstall inner diaphragm plate correctly
3. Check system for pressure ratio to pump
4, Install gaskets with holes properly aligned with parts
or valve and center block

1. Check suction condition (move pump closer to product)
2. Clean out around valve ball cage and valve seat area
- replace valve ball and valve seat if worn or damaged
- check Chemical Resistance Chan for compatibility
and proper elastomer match
- use heavier valve ball material
3. Worn valve ball or valve seat (replace)
- thermal expansion in discharge pipe
(add one way valve into piping)
- worn fingers in valve ball cage (replace part)
4. Check Chemical Resistance Chart for compatibility and
proper elastomer match
5. Consult factory for evaluation and recommendation.
6. Clean suction manifold or piping
- install screen or bag filter

1. Replace diaphragms
(and back up diaphragm when using Teflon)
1,2. Clean out entire center section of pump
2. Check diaphragms for damage and retighten
diaphragm plates
3. Tighten clamp bands (check for stretching)
4. Replace clamp bands (apply grease to inside of clamp
band to assist complete compression)
5. Replace Teflon gasket tape with Teflon diaphragms
6. Check excessive positive suction pressure
(see Operating Manual for recommendations)
- move pump closer to product
- add accumulation tank or pulsation dampener as close
to the pump as possible on suction side of pump
raise pump/place pump on top of tank to reduce
inlet pressure
- install flex hose on inlet and discharge as
recommended installation
Check for excessive inlet pressure or air pressure
- tighten bolts to recommended torque
(see Operating Manual for recommendation)
8. Seat clamp bands with mallet
9. Check Operating Manual for recommendations

1. Flush pump
- start pump slow
2. Add bumper washers
3. Double check tightness of diaphragm plates when
installing replacement diaphragms

1. Set Iubricator on lowest possible setting.
- Elima—Matic is lube free for intermittent service
- clean out center section
2. Check:
- air line size and length
- compressor capacity (HP vs. cfm required)
- other usage of air in plant
- air requirement by pump
(pump capacity, product viscosity and specific gravity)
3, Disconnect and reconnect air
- replace with Elima—Matic air valve
4. Replace o-rings
5. Clean porting in center block to allow proper air flow
6. Check compatibility of o-rings with lubrication
(see Operating Manual)
7. Clean air valve/filter
- check for scoring on spool and sleeve
8. Clean suction or discharge manifolds/piping
- clean filter bags or screens
9. Reinstall o-rings in correct position
(see Operating Manual for assistance)
10. Increase air supply pressure
11. Open discharge valve

1. Set Iubricator on lowest possible setting.
- Elima-Matic is lube free for intermittent service
1,2. Clean center section of pump
2. See Operating Manual for recommended lubrication
3. Replace standard "V" series with Elima—Matic
4. Clean manifolds to allow proper air flow
5. Check system to locate deadhead (equilibrium)
- increase air supply pressure
6. Check suction condition (move pump closer to product)
7. Check:
- air line size and length
- compressor capacity (HP vs cfm required)
- other usage of air in plant
- air requirement by pump
(pump capacity, product viscosity and specific gravity)
8. Replace o-rings
9,10. Consult factory for evaluation and recommendation

1. Enlarge pipe diameter on suction side of pump
1,2. Move pump closer to product
- raise pump/place pump on top of tank to reduce
inlet pressure
2. Add accumulation tank or pulsation dampener
as close to the pump as possible
- start pump slowly (add smart start)
3,4. Consult Chemical Resistance Chart for compatibility with
products, cleaners, temperature limitations and lubrication
5. Check model number on pump in comparison to
Operating Manual for correct part
6. Check Operating Manual for correct installation
7. Check model number on pump in comparison to
Operating Manual for correct part
(ie: Teflon shaft for Teflon diaphragm)
8. Start up pump slowly (manually or with Smart Start)
9. Install control or automatic shutoff

CHEMICAL resistance
quick-reference chart

A Guide To Material Compatibility

This guide is intended as a general guide for pump material selection. This listing includes the most common liquids used in industrial and processing applications.
The guide data has been compiled from many sources believed to be reliable. No guarantee is implied or expressly stated herein. Because of the extensive scope of this field, the tabulation is not complete nor conclusive. Corrosion rates may vary widely with concentration, temperature, and the presence of abrasives. Impurities or other trace elements common in industrial liquids may inhibit or accelerate the reaction of the material being pumped and the effect on pump materials.
Whereas chemicals or liquids may independently be compatible with a type of pump construction, the combination of several liquids may change the chemical compatibility with a given metal, plastic and elastomer. It is important that this is remembered when selecting acceptable materials of construction for a pump.
It must be emphasized that none of these figures constitute warranty of product performance and are only general guidelines of expected material performance.

WARNING: See caution below regarding metal selection and/or solvent pumping.

RATING KEY: We do not recommend the use of any material of construction with a rating of 'C', 'D', or '-'; we only recommend a material of construction with a rating of 'A or B.

HALOGENATED SOLVENTS WARNING The corrosive action of halogenated solvents which come in contact with aluminum or galvanized wetted parts can, in certain situations, cause an explosion. Solvent manufacturers typically add inhibitors to prevent this corrosive action but there is no guarantee that the inhibitors will work in all circumstances. This is especially true of reclaimed or used solvents in which the inhibitors are degraded. Versa-Matic advises that stainless steel or PVDF pumps be used to pump halogenated solvents.

Consult your material supplier for compatibility with aluminum.
Typical examples of halogenated hydrocarbon solvents (H.H.C.) include, but are not limited to, the following:

Carbon Tetrachloride Methylene Chloride

Chloroform Trichloroethane

Dichlorethylene Trichloroethylene

Methyl Chloride

CHEMICALs

elastomers

metals

plastics

VERSA-MATIC PUMP COMPANY

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

acetaldehyde

ch₃cho

acetamide

ch₃conh₂

a/170

a/140

acetate solv

ch₃coor

acetic acid, glacial

a/100

a/120

acetic acid

ch₃cooh

b/70

acetic anhydride

(ch₃co)₂o

b/70

acetone

ch₃coch₃

acetophenone

c₆h₅coch₃

a/70

acetyl chloride

ch₃coc₁

a/120

acetylene

hc=ch

arcylontrile (vinyl cyanide)

ch₂=chcn

a/70

adipic acid

hooc(ch₂)4cooh

alcohols:

amyl

c₄h₉ch₂oh

benzyl

c₆h₅ch₂oh

a/70

butyl

c₃h₇ch₂oh

diacetone

(ch₃)₂c(oh)ch₂coch₃

a/70

ethyl

ch₃ch₂oh

hexyl

c₆h₁₁ch₂oh

a/70

isobutyl

c₃h₇ch₂oh

isopropyl

h₃cch(oh)ch₃

a/150

methyl

ch₃oh

a/120

octyl

c₇h₁₅^⁰ch₂oh

propyl

c₂h₅ch₂oh

a/120

alkazene

alum-nh₃-cr-k

ka1(so₄)2⁰12h₂o

aluminum acetate

aluminum chloride 20%

a1c1₃

aluminum fluoride

a1f₃

aluminum hydroxide

a1(oh)₃

CHEMICALs

elastomers

metals

plastics

RATING KEY:

A - Excellent
B - Good
C* - Poor
D* - Not Recommended
'-' - No Data Available

* Please refer to inside front cover page for
this infomation.

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

aluminum nitrate

a1(no₃)₃⁰9h₂o

aluminum potassium sulfate

a1po₄

aluminum potassium sulfate

ka1(so₄)₂

aluminum sulfate

a1₂(so₄)₃

amines

r-nh₂

ammonia, anhydrous

nh₃

a/70

ammonia, gas(cold)

ammonia, gas (hot)

ammonia, liquids

a/70

ammonia nitrate

ammonium bifluoride

nh₄hf₂

a/70

ammonium carbonate

(nh₄)₂co₃

ammonium casenite

ammonium chloride

nh₄c1

ammonium hydroxide

nh₄oh

ammonium nitrate

nh₄no₃

ammonium nitrite

nh₄no₂

a/70

ammonium oxalate

(nh₄ooc)₂

ammonium persulfate

(nh₄)₂s₂o₈

ammonium phosphate dibasic

(nh₄)₂hpo₄

ammonium phosphate, mono

(nh₄)h₂po₄

ammonium phosphate, tri

(nh₄)₃po₄3h₂o

ammonium sulfate

(nh₄)₂so₄

ammonium thio-sulfate

(nh₄)₂s₂o₃

amyl-acetate (banana oil)

ch₃co₂c₅h₁₁

c/70

a/120

CHEMICALs

elastomers

metals

plastics

VERSA-MATIC PUMP COMPANY

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

amyl-alcohol

ch₃(ch₂)₄nh₂

amyl-borate

c₅h₁₁bo₃

amyl-chloride

ch₃(ch₂)₄c₁

amyl-chloronapthlene

amyl-napthalene

c₁₅h₁₈

aniline (amino benzene)

c₆h₅nh₂

c/70

aniline dyes

aniline hydrochloride

c₆h₅nh₂⁰hc1

animal fats

ansul ether

anti-freeze

aqua regia

a/70

arochlor(s) 1248 pcb mixtures

aromatic hydrocarbons

c₆h₅r

arsenic acid

AsH₃O₄

arsenic trichloride

AsC1₃

askarel pcb mixtures

asphalt

barium carbonate

BaCO₃

barium chloride

barium cyanide

Ba(CN)₂

barium hydroxide

Ba(OH)₂

barium nitrate

Ba(NO₃)₂

barium sulfate

Ba(SO)₄

barium sulfide

BaS

beer

a/175

beet sugar liquids

beet sugar liquors

CHEMICALs

elastomers

metals

plastics

RATING KEY:

A - Excellent
B - Good
C* - Poor
D* - Not Recommended
'-' - No Data Available

* Please refer to inside front cover page for
this infomation.

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

benzaldehyde

c₆h₅cho

a/70

benzene

c₆h₆

a/70

benzenesulfonic acid

c₆h₅so₃h

a/70

benzoic acid

c₆h₅cooh

benzol

a/70

benzyl benzote

c₆h₅co₂c₆h₅

benzyl chloride

c₆h₅ch₂c1

blast furnace gas

co,h₂,ch₄,co₂,n₂

bleach solutions

borax (sodium borate)

B₄Na₂O₇

bordeaux mixture (copper sulfate salt)

boric acid

h₃bo₃

brine

NaC1

brewery slop

bromine

a/150

bromine anhydrous

Br₂

a/150

bromine triflouride

BrF₃

bromine-water

brombenzene

C₆H₅Br

bunker oil

butadiene

c₄h₆

butane (lpg)

c₄h₁₀

butter

buttermilk

butyl acetyle ricinoleate

c₂₂h₄₄o₅

butyl acetate

ch₃co₂(ch₂)₃ch₃

a/70

butyl acrylate

ch₂chco₂c₄h₉

a/70

butyl amine

ch₃(ch₂)₂ch₂nh₂

b/70

butyl benzoate

c₆h₅coo(ch₂)₃ch₃

CHEMICALs

elastomers

metals

plastics

VERSA-MATIC PUMP COMPANY

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

butyl carbitol

ch₃(ch₂)₃och₂ch₂

butyl cellosolve

hoch₂ch₂oc₄h₉

butyl oleate

c₂₂h₄₂o₂

butyl stearate

ch₃(ch₂)₁₆co₂(ch₂)₃ch₃

butylene

c₄h₈

butyraldehyde

ch₃(ch₂)₂cho

butyric acid

ch₃(ch₂)₂co₂h

calcium bisulfide

calcium carbonate (chalk)

CaCO₃

calcium chloride (brine)

CaC1₂⁰6H₂O

calcium hydroxide

Ca(OH)₂

calcium hypochlorite

Ca(C10)₂

calcium nitrate

Ca(NO₃)₂

calcium sulfate (gypsum)

CaSO₄

calcium sulfide

CaS

a/120

calgon

(NaPO₃)₆

cane juice

cane sugar liquors

carbamate

h₂nco₂r

carbitol

ch₃ch₂och₂ch₂och₂ch₂oh

carbolic acid (see phenol)

c₆h₅oh

Carbon bisulfide

CS₂

Carbon dioxide

co₂

Carbon disulfide

CS₂

a/70

Carbon monoxide

Carbon tetrachloride

cc1₄

CHEMICALs

elastomers

metals

plastics

RATING KEY:

A - Excellent
B - Good
C* - Poor
D* - Not Recommended
'-' - No Data Available

* Please refer to inside front cover page for
this infomation.

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

carbonated water

carboic acid

h₂co₃

catsup

cellosolve

hooch₂ch₂or

cellosolve acetate

a/120

cellulube

cloracetic acid

chlorinated glue

chlorine (dry)

c1₂

chlorine (wet)

c1₂/h₂o

chlorine, anhydrous liquid

c1₂

chlorine dioxide

c10₂

chlorine triflouride

c1f₃

chloroacetone

c1ch₂coch₃

chlorobenzene (mono)

c₆h₅c1

a/150

chlorobromo-methane

C1CH₂Br

chlorobutadiene

c₄h₅c1

chlorododecane

chloroform

chc1₃

o-chloro-napthalene

c₁₀h₇c1

1-chloro 1-notro athane

chlorosulfonic acid

hso₃c1

chlorotoluene

chlorox (bleach)

chocolate syrup

chromic acid 5%

H₂Cro₄

a/70

a/120

chromic acid 5%

a/70

a/120

chrome plating solutions

CHEMICALs

elastomers

metals

plastics

VERSA-MATIC PUMP COMPANY

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

cider

citric acid

c₆h₈o₇⁰h₂o

a/250

citric oils

cobalt chloride (2m)

CoC1₂⁰6h₂o

coffee

coke even gas

copper acetate

Cu(C₂H₃O₂)₂⁰CuO⁰6H₂O

copper chloride

CuC1₂⁰2H₂O

copper cyanide

CuCN

copper fluoborate

copper nitrate

Cu(CO₃)₂

copper sulfate (5% solution)

CuSO₄⁰5H₂O

cream

cresols

a/150

cresylic acid

c₈h₁₀o₂

a/150

cyclohexane

c₆h₁₂

cyclohexanol

c₆h₁₁oh

a/150

cyclohexanone

c₆h₁₀o

b/70

cyanic acid

decalin (deklin)

c₁₀h₁₈

b/120

a/175

decane

ch₃(ch₂)₈ch₃

a/70

denatured alcohol

detergents

developing fluids

diacetone

(ch₃)₂cohch₂coch₃

a/70

dibenzyl ether

(c₆h₅ch₂)₂o

dibenzyl sebecate

c₂₄h₃₀o₄

dibutyl amine

(c₄h₉)₂nh

dibutyl ether

a/120

dibutyl phthalate

c₆h₄(co₂c₄h₉)₂

dibutyl sebecate

c₁₈h₃₄o₄

CHEMICALs

elastomers

metals

plastics

RATING KEY:

A - Excellent
B - Good
C* - Poor
D* - Not Recommended
'-' - No Data Available

* Please refer to inside front cover page for
this infomation.

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

o-dichlorobenzene

c₆h₄Cl₂

b/70

a/150

dichloro-isopropyl ether

c₆h₁₂oc1₂

dicyclohexylamine

(c₆h₁₁)₂nh

diesel fuel

b/70

diethyl benzene

c₆h₄(c₂h₅)₂

diethyl ether

(ch₃ch₂)₂o

a/70

diethyl sebecate

c₁₄h₂₆o₄

a/120

diethylamine

(ch₃ch₂)₂nh

a/70

diethylene glycol

hoch₂ch₂och₂ch₂oh

diisobutylene

[hc=c(ch₃)₂]₂

diisopropyl benzene

ch₄[ch(ch₃)₂]₂

diisopropyl ketone

[(ch₃)₂ch]₂co

dimethyl anline

c₆h₅n(ch₃)₂

a/70

dimethyl formamide

hcon(ch₃)₂

a/120

dimethyl phthalate

c₆h₄(co₂ch₃)₂

a/70

dinitrotoluene

ch₃c₆h₃(no₂)₂

dioctyl phthalate

c₂₄h₃₈o₄

dioctyl sebecate

c₂₆h₅₀o₄

dioxane

c/120

dioxolane

dipentene

c₁₀h₁₆

diphenyl

a/120

diphenyl oxide

c₆h₅oc₆h₅

dowtherm oil

(c₆h₅)₂ and (c₆h₅)₂o

dry cleaning fluids

dyes

epichlorohydrine

c₃h₅c₁₀

b/70

epsom salts

MgSO₄⁰7H₂O

ethane

c₂h₆

ethanolamine

h₂nch₂ch₂oh

ether

a/70

CHEMICALs

elastomers

metals

plastics

VERSA-MATIC PUMP COMPANY

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

ethyl acetate

ch₃cooch₂ch₃

ethyl acetoacetate

ch₃coch₂cooch₂ch₃

a/70

ethyl acrylate

ch₂chco₂ch₂ch₃

ethyl benzene

ch₃ch₂c₆h₅

ethyl benzoate

c₆h₅co₂ch₂ch₃

ethyl cellosolve

c₂h₅o(ch₂)₂oh

ethyl cellulose

ethyl chloride

c₂h₅c1

ethyl chlorocarbonate

c1co₂c₂h₅

ethyl chloroformate

ethyl ether

ethyl formate

hcooch₂ch₃

ethyl mercaptan

ch₃ch₂sh

ethyl oxalate

c₂h₅o₂cco₂c₂h₅

ethyl pentochlorobenzene

c₂h₅c₆c1₅

ethyl silicate

Si(OCH₂CH₃)₄

ethyl sulfate

c₂h₅oso₂oh

ethylene

c₂h₄

ethylene chloride

ethylene chlorohydrin

c1ch₂ch₂oh

a/70

ethylene diamine

(ch₂)₂(nh₂)₂

ethylene dichloride

C1(CH₂)₂Cl

ethylene glycol

(ch₂oh)₂

a/120

ethylene oxide

(ch₂)₂o

ethylene trichloride

c1chcc1₂

fatty acids

C_nH_2n+1COOH

b/70

ferric chloride

FeC1₃

ferric nitrate

Fe(NO₃)₃

ferric sulfate

Fe₂(SO₄)₃

ferrous chloride

FeC1₂

ferrous sulfate

FeSO₄

CHEMICALs

elastomers

metals

plastics

RATING KEY:

A - Excellent
B - Good
C* - Poor
D* - Not Recommended
'-' - No Data Available

* Please refer to inside front cover page for
this infomation.

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

fish oil

fluboric acid

hbf₄

fluoroboric acid

fluorine (liquid)

f₂

a/70

fluorobenzene

fc₆h₅

fluorocarbon oils

F_xC_yH_z

fluorolube

fluorinated cyclic ethers

fluosilicic acid

H₂SiF₆

formaldehyde

hcho

a/120

formic acid

hcooh

freon 11

cc1₃f

freon 12 (wet)

c1₂cf₂

freon 13

c1cf₃

freon 21

fchc1₂

freon 22

hcc1f₂

freon 31

freon 32

freon 112

freon 113

c1₃ccf₃

freon 114

c₂c1₂f₄

freon 115

c₂cc1f₅

freon 142b

freon 152a

freon 218

freon c316

freon c318

freon 13b1

B_rCF₃

freon 114b2

freon 502

freon tf

freon t-wd602

CHEMICALs

elastomers

metals

plastics

VERSA-MATIC PUMP COMPANY

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

freon tmc

freon t-p35

freon ta

freon tc

freon mf

freon bf

fruit juice

fuel oil

fumaric acid

hooch=chcooh

furan, furfuran

c₄h₄o

furan resin

furfural

c₅h₄o₂

b/120

galic acid

c₆h₂(oh)₃cooh

a/70

gasoline, leaded

gelatine

glucose

c₆h₁₂o₆

glue pva

glycerine

c₃h₈o₃

glycolic acid

hoch₂cooh

a/70

glycols

gold monocyanide

AuCN

grape juice

grease

green sulfate liquor

halowax oil

heptane

c₇h₁₆

c/170

hexachlorobutadene

hexane

c₆h₁₄

c/170

n-hexaldehyde

n-hexene-1

h₂cch(ch₂)₃ch₃

honey

hydraulic oils (petroleum)

hydraulic oils (synthetic)

CHEMICALs

elastomers

metals

plastics

RATING KEY:

A - Excellent
B - Good
C* - Poor
D* - Not Recommended
'-' - No Data Available

* Please refer to inside front cover page for
this infomation.

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

hydrazine

h₂nnh₂

a/70

a/120

hydrobromic acid

HBr

hydrochloric acid (20%)

hc1

hydrochloric acid (37%) (hot)

hc1

hydrochloric acid (37%) (cold)

hc1

hydrocyanic acid

hcn

hydrofluoric acid (20%)

hydrofluoric acid(50%)

hydrofluoric acid(75%)

hydrofluoric acid (conc.)(hot)

hydrofluoric acid (conc.)(cold)

hydrofluosilicic acid (20%)

hydrogen gas

h₂

hydrogen peroxide

h₂o₂

a/70

hydrogen sulfide(wet)(cold)

h₂s

hydrogen sulfide (wet)(hot)

h₂s

hydrogen sulfide aqueous sulotion

hydroquinone

c₆h₄(oh)₂

hydroxyacetic acid(70%)

hoch₂cooh

hypochlorous acid

hc10

ink

iodine (in alcohol)

i₂

a/70

a/150

iodine pentafluoride

idoform

chi₃

isooctane

c₈h₁₈

isotane

isophorone

c₉h₁₄o

isopropyl acetate

ch₃cooch(ch₃)₂

isopropyl chloride

(ch₃)₂chc1

isopropyl ether

(ch₃)₂choch(ch₃)₂

jet fuel (jp3, jp4, jp5)

kerosene

CHEMICALs

elastomers

metals

plastics

VERSA-MATIC PUMP COMPANY

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

ketones

a/70

lacquers

lacquers solvents

lactic acid

ch₃chohcooh

a/70

lard

latex

lavender oil

lead acetate

Pb(CH₃CO₂)₂

lead sulfamate

ligroin

lime

CaO

lime bleach

lime sulfur

CaS+CaSO₄

lindol

linoelic acid

c₁₀h₃₂o₂

a/70

liquefied petroleum gas

lithium chloride brine

lc1 h₂o

lithium chromate brine

LI₂CrO₄H₂O

lubricants

lubricating oils (petroleum)

lye

KOH, NaOH

a/150

magnesium carbonate

MgCO₃

magnesium chloride

MgC1₂O

magnesium hydroxide

Mg(OH)₂

magnesium nitrate

Mg(NO₃)₂⁰6H₂O

magnesium oxide

MgO

magnesium sulfate

MgSO₄⁰7H₂O

maleic acid

(chcooh)₂

maleic anhydride

c₄h₂o₃

malic acid

c₄h₆o₅

mash

mayonnaise

CHEMICALs

elastomers

metals

plastics

RATING KEY:

A - Excellent
B - Good
C* - Poor
D* - Not Recommended
'-' - No Data Available

* Please refer to inside front cover page for
this infomation.

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

melamine

mercuric chloride (dilute solu)

HgC1₂

mercuric cyanide

Hg(CN)₂

mercury

mesityl oxide

(ch₃)₂c=chcoch₃

methane

ch₄

methanol (see alcohol methyl)

ch₃oh

a/120

methyl acetate

ch₃co₂ch₃

methyl acrylate

ch₂

chco₂ch₃

methyl acetone

methyl bromide

CH₃Br

methyl butyl ketone

ch₃coc₄h₉

methyl cellosolve

ch₃pch₂ch₂oh

methyl chloride

ch₃c1

methyl cyclopentane

c₆h₁₂

methyl dichloride

ch₂c1₂

methyl ethyl ketone

ch₃co⁰ch₂ch₃

methyl formate

hcooch₃

methyl isobutyl ketone

methyl isopropyl ketone

methyl methacrylate

ch₂c(ch₃)co₂ch₃

methyl oleate

c₁₉h₃₆o₂

methyl salicylate

hoc₆h₄cooch₃

methylacrylic acid

ch₃chchco₂h

methylamine

ch₃nh₂

methylene chloride

ch₂c1₂

milk

molasses

monochlorobenzene

c₆h₅c1

a/150

monomethyl aniline

c₆h₅nhch₃

monoethanolamine

nh₂c₂h₄oh

CHEMICALs

elastomers

metals

plastics

VERSA-MATIC PUMP COMPANY

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

monomethylether

monovinyl acetylene

mustard

mustard gas

naptha

napthalene

c₁₀h₈

a/70

napthenic acid

natural gas

neatsfoot oil

neville acid

nickel acetate

Ni(CH₃CO₂)₂

nickel chloride

NiC1₂

nickel sulfate

NiSO₄

niter cake

nitric acid(5-10% solution)

hno₃

a/120

nitric acid(20% solution)

hno₃

b/70

nitric acid(50% solution)

hno₃

b/70

nitric acid(concentrated sol)

hno₃

nitric acid-red fuming

hno₃

nitrobenzene

c₆h₅no₂

a/70

nitrobenzine

nitro ethane

c₂h₅no₂

nitromethane

ch₃no₂

a/120

nitrogen(gas)

n₂

nitrogen tetroxide

n₂o₄

octadecane

ch₃(ch₂)₁₆ch₃

n-octane

c₈h₁₈

octachlorotoluene

C₇Cl₈

CHEMICALs

elastomers

metals

plastics

RATING KEY:

A - Excellent
B - Good
C* - Poor
D* - Not Recommended
'-' - No Data Available

* Please refer to inside front cover page for
this infomation.

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

oils

aniline

a/70

anise

bay

none

castor

cinnamon

citric

clove

coconut

cod liver

corn

cotton seed

cresote

diesel fuel

b/70

fuel

b/70

ginger

hydraulic

lemon

linseed

mineral

olive

orange

palm

peanut

peppermint

pine

rape seed

rosin

resame seed

silicone

soybean

CHEMICALs

elastomers

metals

plastics

VERSA-MATIC PUMP COMPANY

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

oils (cont.)

sperm

tanning

turbine

b/70

oleic acid

c₁₈h₃₄o₂

oleum

h₂so₄/so₃

oleum spirits

o-dichlorobenzene

c₆h₄c1₂

oxalic acid(cold)

(cooh)₂

a/70

a/120

oxygen-cold

o₂

oxygen 200-400°F

ozone

o₃

paint thinner-duco

palmitic acid

ch₃(ch₂)₁₄cooh

paraffin

pentane

c₅h₁₂

perchloric acid

hc10₄

a/120

perchloroethylene

c₂c1₄

petrolatium

petroleum-below 250

a/70

a/200

petroleum-above 250

phenol(carbolic acid)

c₆h₅oh

a/70

phenylbenzene

c₆h₅

phenyl ethyl ether

c₆h₅oc₂h₅

phenyl hydrazine

c₆h₅nhnh₂

phorone

c₉h₁₄o

phosphoric acid-20%

h₃po₄

a/120

phosphoric acid(to 40% solution)

a/120

phosphoric acid-45%

h₃po₄

a/120

phosphoric acid 40-100% solution

a/120

phosphoric acid crude

h₃po₄

a/120

phosphorous trichloride acid

pc1₃

CHEMICALs

elastomers

metals

plastics

RATING KEY:

A - Excellent
B - Good
C* - Poor
D* - Not Recommended
'-' - No Data Available

* Please refer to inside front cover page for
this infomation.

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

photographic developer

pickling solution

picric acid

(no₂)₃c₆h₂oh

b/70

a/70

pinene

c₁₀h₁₆

piperidine

c₅h₁₁n

plating solutions:

antimony

a/70

arsenic

brass

brone

cadmium

chrome

copper

gold

indium

iron

lead

b/70

nickel

silver

tin

zinc

polyvinyl acetate emulsion

PVac+H₂O

potash

k₂co₃

potassium acetate

ch₃co₂k

potassium bicarbonate

khco₃

potassium bromide

KBr

potassium carbonate

k₂co₃

potassium chlorate

k₂c10₃

potassium chloride

kc1

potassium chromate

K₂CrO₄

potassium cupro cyanide

K₃[Cu(CN)₄]

potassium cyanide solutions

kcn

CHEMICALs

elastomers

metals

plastics

VERSA-MATIC PUMP COMPANY

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

potassium dichromate

K₂Cr₂O₇

potassium hydroxide

koh

a/150

potassium nitrate

kno₃

potassium permanganate

KMnO₄

potassium sulfate

k₂so₄

producer gas

propane (liquified)(lpg)

c₃h₈

propyl acetate

ch₃coo(ch₂)₂ch₃

a/70

propyl nitrate

ch₃(ch₂)₂no₃

propylene

c₃h₆

propylene glycol

c₃h₆(oh)₂

propylene oxide

c₃h₆o

pyranol

pydralus

pyridine

n(ch)₄ch

pyrogallic acid

pyroligneous acid

pyrrole

c₄h₅n

radiation

red oil

rosins

c₂₀h₃₀o₂

rum

rust inhibitors

salad dressing

sal ammoniac

nh₄c1

salt water

NaC1/H₂O

sea water

sewage

shellac (bleached)

shellac (orange)

silicate esters

Si(OR)₄

silicone

[(CH₃)₂SiO₂]_n

CHEMICALs

elastomers

metals

plastics

RATING KEY:

A - Excellent
B - Good
C* - Poor
D* - Not Recommended
'-' - No Data Available

* Please refer to inside front cover page for
this infomation.

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

silicone greases

silver bromide

silver nitrate

AgNO₃

skydrol 500

skydrol 7000

soap solutions

soda ash(sodium carbonate)

sodium acetate

CH₃COONa

sodium aluminate

Na₂A1₂O₄

sodium bicarbonate(banking soda)

sodium bisulfate

NaHSO₃

sodium bisulfite

NaHSO₃

sodium borate

Na₂B₄O₇

a/140

sodium carbonate

sodium chlorate

NaC10₃

sodium chloride (salt)

NaC1

sodium chromate

Na₂CrO₄

sodium cyanide

NaCN

sodium hydroxide(20%)

NaOH

sodium hydroxide(50% solution)

NaOH

sodium hydroxide (80% solution)

NaOH

sodium hypochlorite (to 20%)

NaC10

sodium metaphosphate

Na(NO₃)H

sodium metasilicate

Na₂SiO₃

sodium nitrate

NaNO₃

sodium perborate

NaBO₃

sodium peroxide

Na₂O₂

b/120

sodium phosphate

Na₃PO₄

sodium polyphosphate(mono, di, tribasic)

sodium silicate

Na₂O°SiO₂

sodium sulfate

Na₂SO₄

sodium sulfide

NaS°5H₂O

CHEMICALs

elastomers

metals

plastics

VERSA-MATIC PUMP COMPANY

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

sodium tetraborate

Na₂B₄O₇1OH₂O

sodium thiosulfate(hypo)

Na2S₂O₃

sorghum

soy sauce

stannic chloride

SnC1₄

stannic fluoborate

starch

c₆h₁₀o₅

steam to 255°F

steam 225-300°f

stearic acid

ch₃(ch₂)₁₆co₂h

stoddard solvent

b/120

styrene

c₆h₅chch₂

sucrose solution

c₁₂h₂₂o₁₁/h₂o

sugar (liquids)

sulfate liquors

sulfite liquors

sulfur

sulfur chloride

s₂c1₂

a/70

sulfur dioxide

so₂

a/70

sulfur hexafluoride

sf₆

sulfur trioxide

so₃

sulfur trioxide(dry)

sulfuric acid(dilute)

h₂so₄

sulfuric acid(to 10%)

h₂so₄

sulfuric acid(10-75%)

h₂so₄

a/150

sulfuric acid(concentrated)

h₂so₄

b/70

a/120

sulfuric acid(20% oleum)

h₂so₄

sulfurous acid

h₂so₃

syrup

allow

b/70

tannic acid

h₇₆h₅₂o₄₆

tanning liquors

CHEMICALs

elastomers

metals

plastics

RATING KEY:

A - Excellent
B - Good
C* - Poor
D* - Not Recommended
'-' - No Data Available

* Please refer to inside front cover page for
this infomation.

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

tar, bituminous

tartaric acid

c₄h₆o₆

terpineol

c₁₀h₁₈o

b/120

tertiary butyl alcohol

(ch₃)₃coh

tertiary butyl catechol

c₉h₁₄o₂

tertiary butyl mercaptan

c₄h₁₀s

tera bromomethane

CBr₄

tetrabutyl titanate

Ti(C₄H₉)

tetrachloroothylene

c1₂c=cc1₂

tetrachloroethane

tetraethyl lead

Pb(C₂H₅)₄

a/70

tetrahydrofuran

c₄h₈o

b/70

tetralin

c₁₀h₁₂

thionyl chloride

soc1₂

titanium tetrachloride

TiC1₄

toluene

c₇h₈

toluene diisocyanate

ch₃c₆h₃(nco)₂

toluene, toluol

tomato juice

transformer oil

b/70

transmisson fluid type a

triacetin

c₃h₅(ococh₃)₃

tributoxy ethyl phosphate

tributyl phosphate

(c₄h₉)₃po₄

a/70

tributyl mercaptan

trichloroacetic acid

cc1₃cooh

b/70

a/70

trichlorethane

c₂h₃c1₃

a/120

trichlorethylene

c₂hc1₃

trichloropropane

ch₂c1chc1ch₂c1

tricresylphosphate

(ch₃c₆h₄o)₃po

b/70

triethylamine

(ch₃ch₂)₃n

a/120

triethanol amine

a/70

CHEMICALs

elastomers

metals

plastics

VERSA-MATIC PUMP COMPANY

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

triethyl aluminum

a1(c₂h₅)₃

triethyl borane

(c₂h₅)₃b

trinitroltoluene (tnt)

ch₃c₆h₂(no₂)₃

trioctyl phosphate

(c₈h₁₇o)₃po

triaryl phosphate

(c₆h₅o)₃po

tung oil

terpentine

c₁₀h₁₆

unleaded gasoline

unsymmetrical dimethyl hydrazine

a/70

urine

vegetable juice

vegetable oils

a/120

verilube f44 & f50

vinegar

varnish

vinyl chloride

ch₂chc1

wagner 21 b fluid

water, acid mine

water, distilled, lab grade 7

water, fresh

h₂o

water, salt

H₂O/CaC1₂

weed killers

whey

whiskey and wine

white liquor (pulp mill)

white pine oil

white oil

white water(paper mill)

wood oil

xylene

c₆h₄(ch₃)₂

xylidenes

(ch₃)₂c₆h₃nh₂

zeolites

CHEMICALs

elastomers

metals

plastics

RATING KEY:

A - Excellent
B - Good
C* - Poor
D* - Not Recommended
'-' - No Data Available

* Please refer to inside front cover page for
this infomation.

p
o
l
y
u
r
e
t
h
a
n
e

n
e
o
p
r
e
n
e

b
u
n
a

n

n
o
r
d
e
l

v
i
t
o
n

x
l

t
p
e

s
u
p
r
e
m
e

t
p
e

f
d
a

h
y
t
r
e
l

t
e
f
l
o
n

a
l
u
m
i
n
u
m

c
a
s
t

i
r
o
n

s
t
a
i
n
l
e
e
s

s
t
e
e
l

h
a
s
t
e
l
l
o
y

p
o
l
y
u
r
e
t
h
a
n
e

k
y
n
a
r

zinc acetate

Zn(C₂H₃O₂)₂

zinc chloride

ZnC1₂

zinc hydrosulphite

ZnHSO₃

zinc sulfate

ZnSO₄

materials of construction-pumps

MODEL#	Aluminum	Cast Iron	Hastelloy C	Polypropylene	PVDF Kynar^®	Stainlees Steel	Teflon^®PFA
vn.50	■		■	■	■	■	■
v1.0/vm1.0	■		■	■	■	■
e1 elima-matic	■		■	■	■	■
v1.25	■	■	■			■
v2.0	■	■	■			■
v2.0 fv	■
e2 elima-matic	■	■	■	■	■	■
e3 elima-matic	■	■	■			■
v3.0	■	■	■			■

diaphragms, valve balls, valve seats & valve seat o-rings

temperature limits*

NEOPRENE 0°F (-18°C) to +200°F (93°C)
BUNA-N +10°F (-12°C) to +180°F (82°C)
NORDEL -60°F (-51°C) to +280°F (138°C)
MON -40°F (-40°C) to +350°F (176°C)
TEFLON FIFE +40°F (+4°C) to +220°F (105°C)
POLYURETHANE +10°F (-12°C) to +170°F (77°C)
XL TPE -20°F (-29°C) to +300°F (149°C)
TEFLON PFA -20°F (-29°C) to +300°F (149°C)
SUPREME TPE 0°F (-18°C) to +200°F (93°C)
FDA HYTREL -20°F (-29°C) to +220°F (104°C)
METALUC PUMPS can operate to 212°F (100°C).
(If you are operating above these limits, consult the factory for assistance.)
PLASTIC PUMPS can operate to the following temperature limits:
POLYPROPYLENE: 32°F (0°C) to 175°F (79°C)
PVDF (Kynar): 10°F (-12°C) to 225°F (107°C)
TEFLON PFA: -20°F (-29°C) to 200°F (93°C)
@ 100 psi, 300°F (149°C) @ 30psi discharge head
*NOTE: These are average temperatures. Chemicals and solvents can have an effect on temperature limits.

wetted material compatibility

elastomer material color code

BUNA-N Black wiRed Dot
FDA HYTREL Creme
NEOPRENE Black w/Green Dot
NORDEL Black w/Blue Dot
POLYURETHANE Pale Yellow
TEFLON PFA White
ONE-UP Black/White
VITON Black w/Silver Dot
XL TPE Bright Yellow
These color codes are used for
Versa-Matic manufactured
elastomer products. Other
industrial elastomer product
manufacturers' color codes
may differ.

Hytrel^®, Nordel^®, PFA^®, Teflon^® and Viton^®
are registered trademarks of DuPont.
Kynar^® is a registered trademark of Penwalt Corp.
One-Up^® is a registered trademark of W.L. Gore and Associates.

Elima-Matic^®, Tef-MaticTm, Thermo-MaticTm, Versa -Dome^®,
Versa-Matic^® and VRTM are trademarks of Versa-Matic Tool, Inc.

Some Versa-Matic Tool, Inc. products are subject to patent pending
applications and issued patents. Elima-Matic U.S. Patent No. 5,326,234.

©Copyright 1994 Versa -Matte Tool, Inc.
